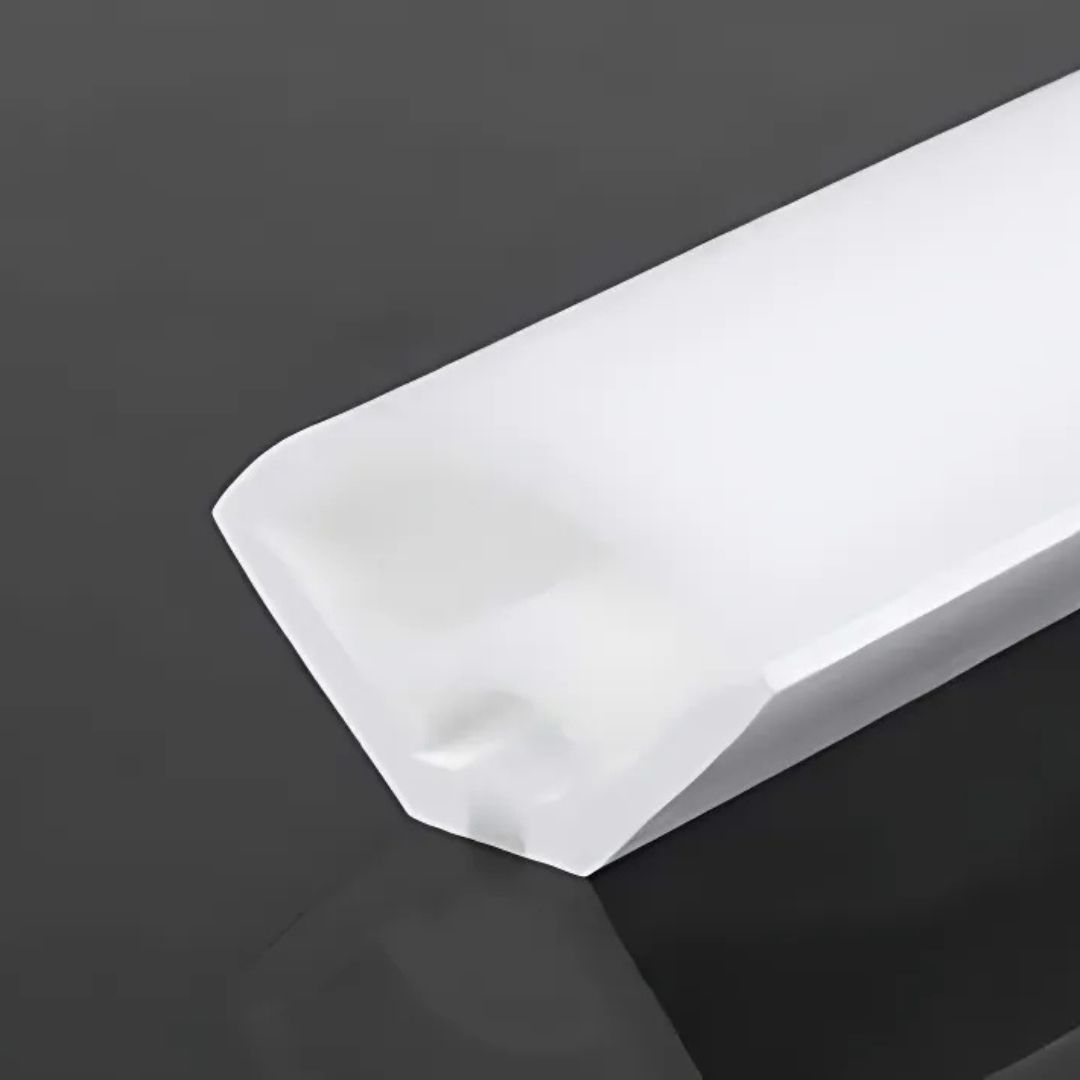

Flexible Silicone LED Profile – 22x14mm V-Shape | Corner-Mount, Dot-Free & Weather-Resistant LED Diffuser Channel

Create sleek, professional corner lighting with the 22x14mm V-Shape Flexible Silicone LED Profile from Chronos Lights. Designed for precision architectural integration, this food-grade silicone diffuser fits neatly into 90° corners—perfect for cove lighting, signage outlines, and ceiling-to-wall transitions.

Pair it with high-density COB or SMD LED strips to achieve a smooth, neon-style glow without visible hotspots. Whether you’re lighting up interiors or bold outdoor facades, this profile delivers both function and finesse.

✨ Key Features & Benefits:

📐 V-Shape 90° Corner Fit
Tailored for clean, right-angle installations in walls, ceilings, and stair edges. The angular profile ensures perfect placement for indirect and ambient lighting.

🧪 Premium Silicone Construction
Crafted from non-toxic, food-grade silicone with excellent optical clarity. UV-stabilized to resist yellowing, brittleness, and environmental wear—even in direct sunlight.

💡 Wide LED Strip Compatibility

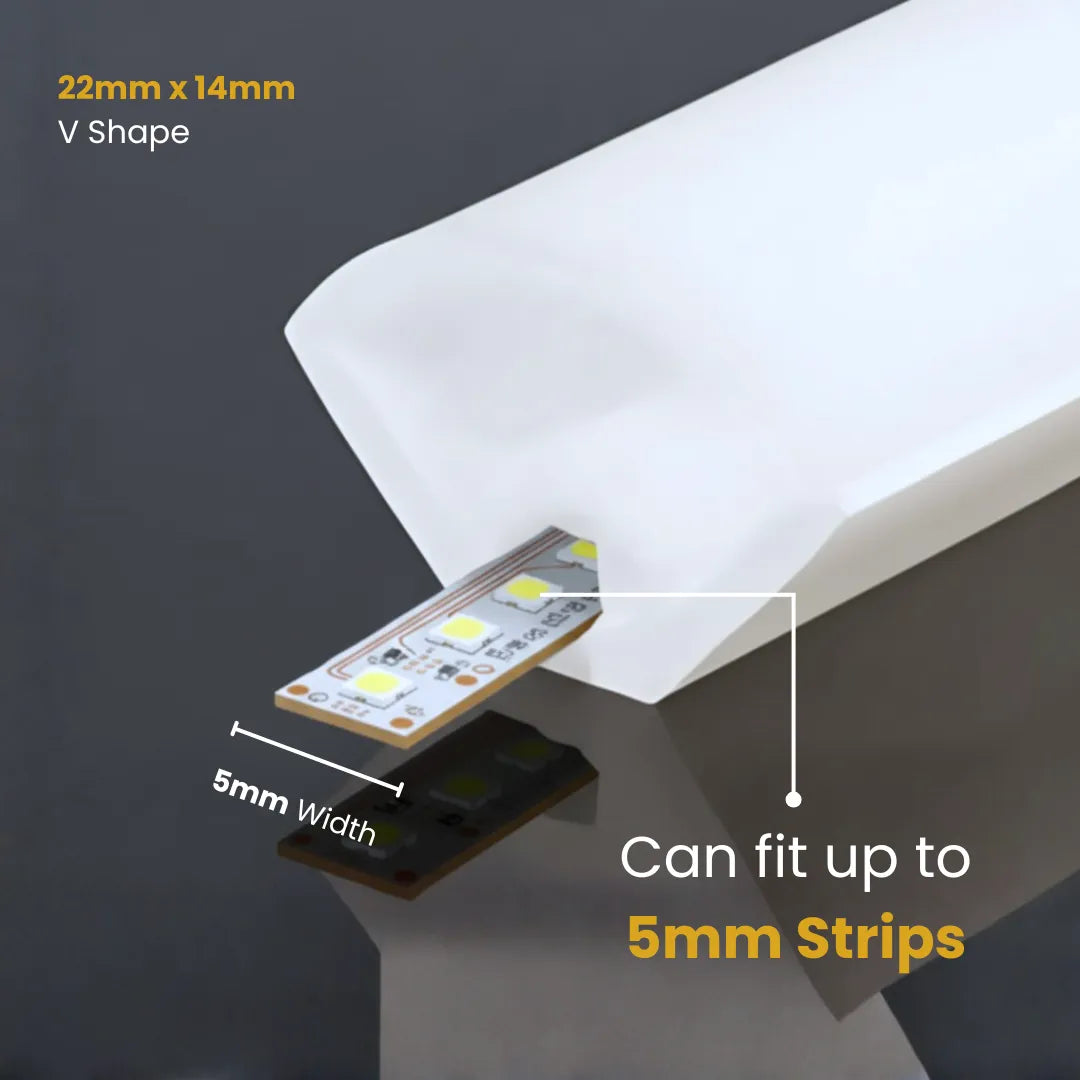

Fits LED strips up to 5mm wide, including popular models like COB, 2835, 3528, and 5050. For best results, pair with 120+ LEDs/m or COB strips to ensure dot-free light dispersion.

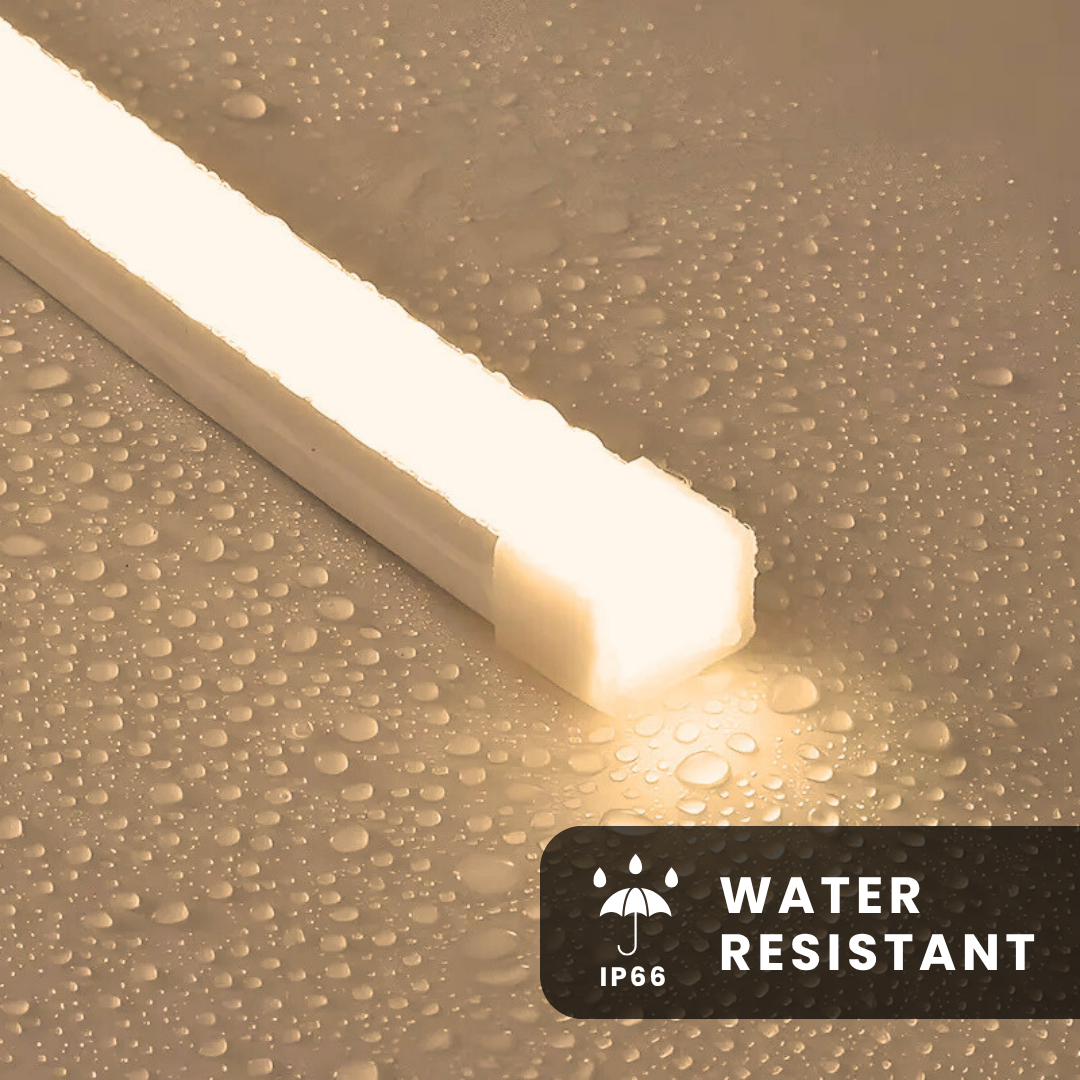

🌧️ Outdoor-Ready with IP66 Potential
When sealed with silicone adhesive and end caps, the profile achieves IP66 water protection—ideal for balconies, garden borders, signage, and wet zones.

🌈 Smooth Light Diffusion
Features a milky/translucent finish that softens and blends LED output—delivering an elegant neon glow without harsh glare or visible light points.

🔧 Professional Mounting Flexibility
Compatible with aluminum mounting channels, corner brackets, and glue-based or recessed installs. Designed for long-term durability and visual refinement.

🧼 Low Maintenance, High Impact
Dustproof, corrosion-resistant, and safe for prolonged use in both residential and commercial environments.

💡 Ideal Applications:

• Architectural Coves & Corners – Illuminate ceiling trims, wall-to-wall junctions, or design contours

• Signage & Branding – Highlight logos, text outlines, and retail fascia with clean, glowing edges

• Staircase & Railing Accents – Add light to vertical surfaces for safety and style

• Retail & Display Lighting – Line shelves, backdrops, and product displays with sleek linear light

• Outdoor Decor & Garden Highlights – Use in façade outlines, balcony walls, or planter edges

❓ Frequently Asked Questions (FAQs):

Q: Can this profile be used outdoors?
✅ Yes, when sealed correctly with end caps and silicone glue, it can achieve IP66 waterproofing—safe for outdoor and damp areas.

Q: Is it flexible enough for curved corners?

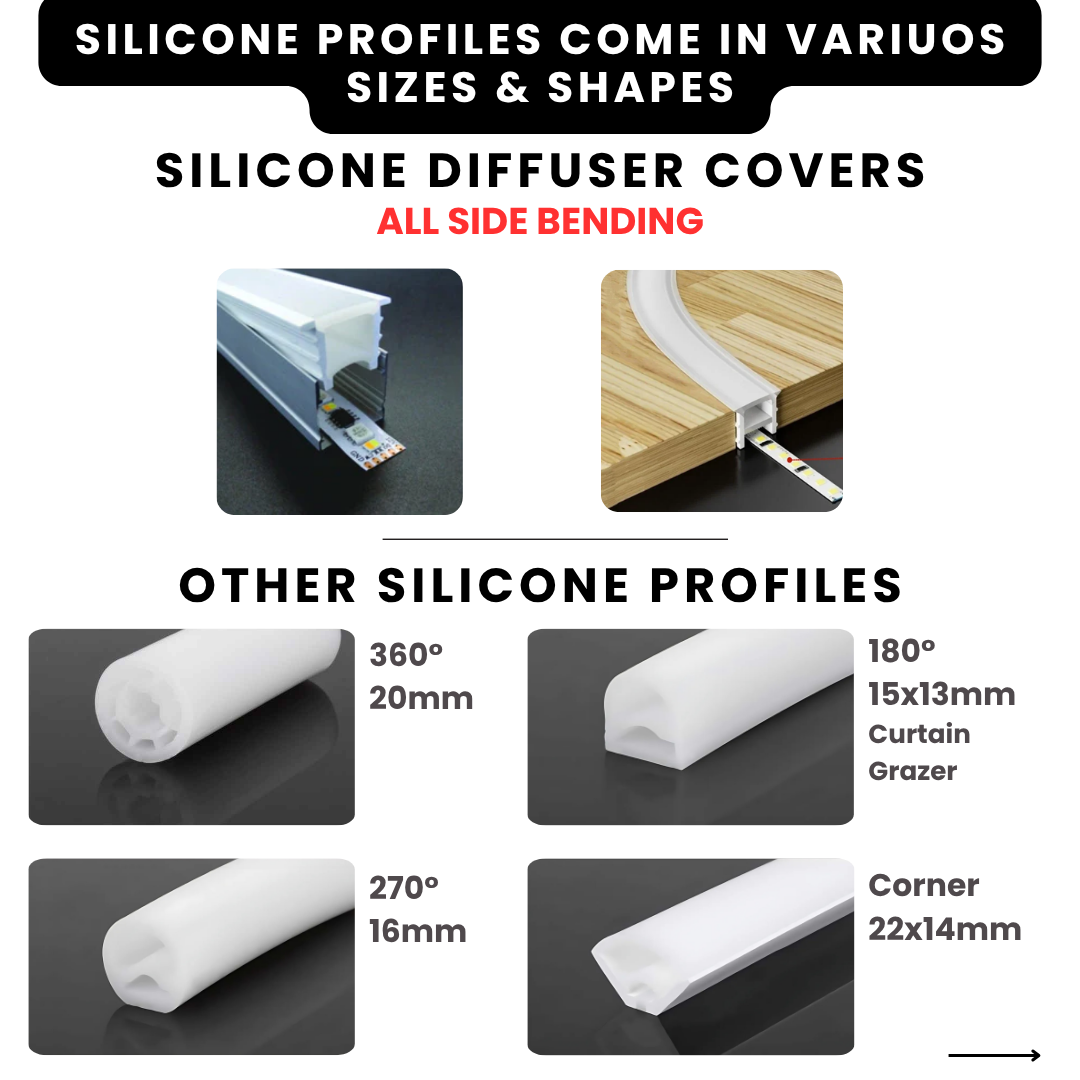

🔄 While primarily designed for straight 90° corners, it offers moderate bendability along gradual arcs. For tighter curves, check our curved silicone profiles.

Q: Does it work with RGB or COB strips?
✅ Absolutely. The 22x14mm channel supports single-color, RGB, and tunable CCT LED strips up to 5mm wide.

Q: Is an aluminum channel necessary?
🔧 Not essential for all installs. But for high-precision or heat-dissipating setups, an aluminum base channel is recommended.

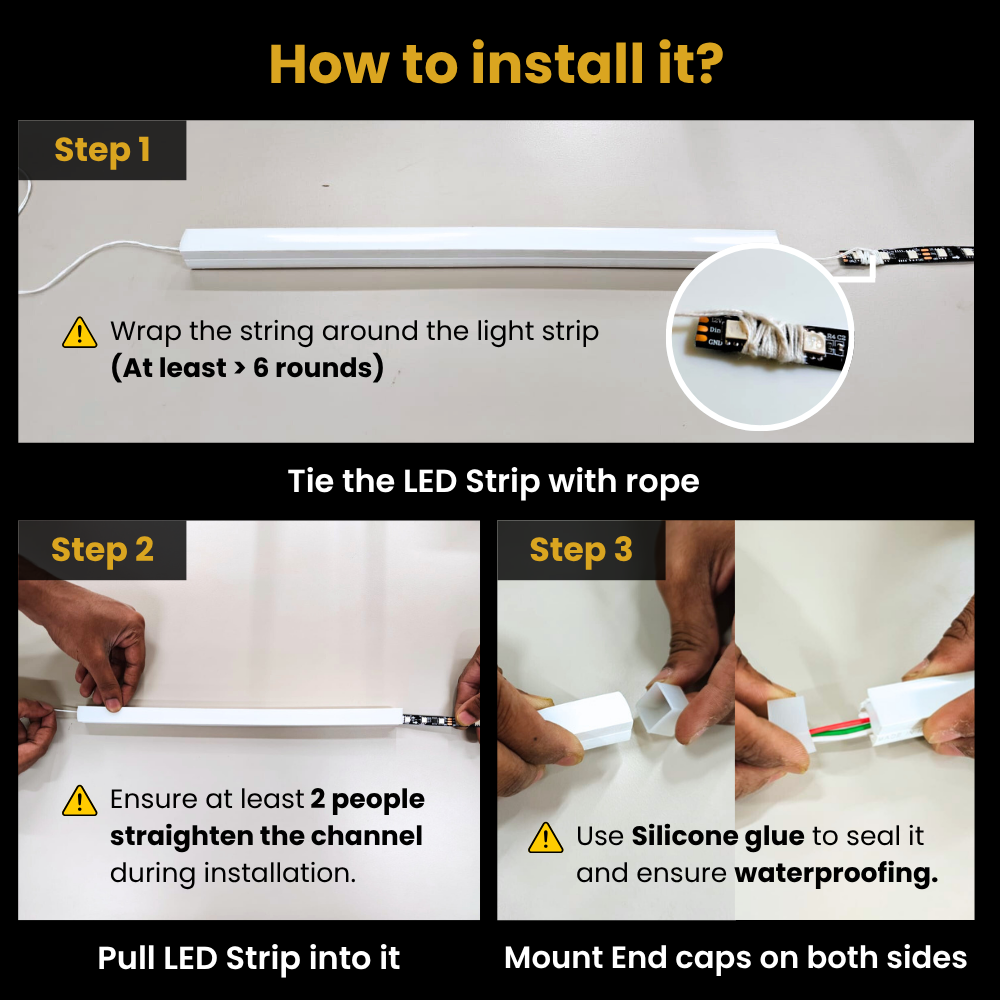

🛠️ Installation Tips:

1. Measure & Cut: Trim the profile and LED strip to desired length.

2. Insert LED Strip: Slide in your 5mm or smaller strip—ensure it sits flat.

3. Seal the Ends: Use silicone glue and end caps to waterproof (for IP66).

4. Mount Securely: Apply glue, clips, or insert into compatible aluminum bracket.

⚙️ Compatible LED Types:

• COB LED strips (dot-free)

• SMD 2835 / 3528 / 5050 LED strips

• 12V / 24V flexible strips

• RGB / RGBW / Tunable White CCT strips (≤12mm width)

Light Meets Architecture

From retail corners to hospitality coves, the Chronos Lights 22x14mm V-Shape Silicone Profile is your go-to solution for premium corner-mounted illumination. Functional, durable, and beautifully designed for Indian lighting projects.

Proudly Made in India 🇮🇳
Engineered in Mumbai and crafted to global standards, Chronos Lights’ silicone profiles empower architects and creators across Delhi, Bangalore, Hyderabad, Pune, Chennai & Kolkata.
