Running Strip Light Controller 12 Key Wireless RF Remote For 24V WS2811 LED Running Strip

Running Flowing Water Wireless Controller for LED Running Strip Lights - 12 Key Wireless Remote Control (WS2811)

Transform your LED strip lighting experience with the Running Flowing Water Wireless Controller (also known as the Horse Race Running Lights Controller). This controller module comes with an RF controlled wireless panel, offering you speed, brightness, and mode control with a range of features to enhance your lighting setup.

Key Features:

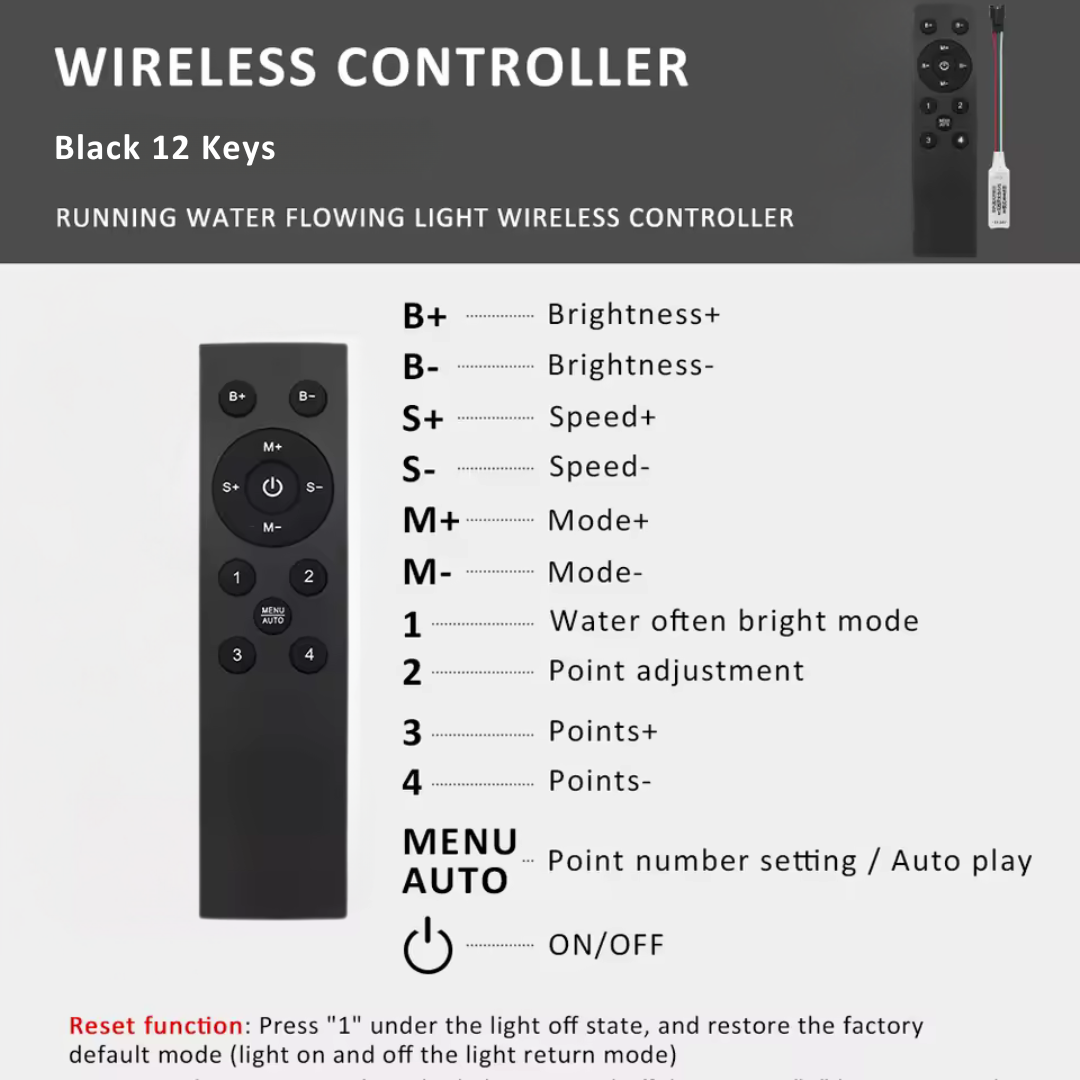

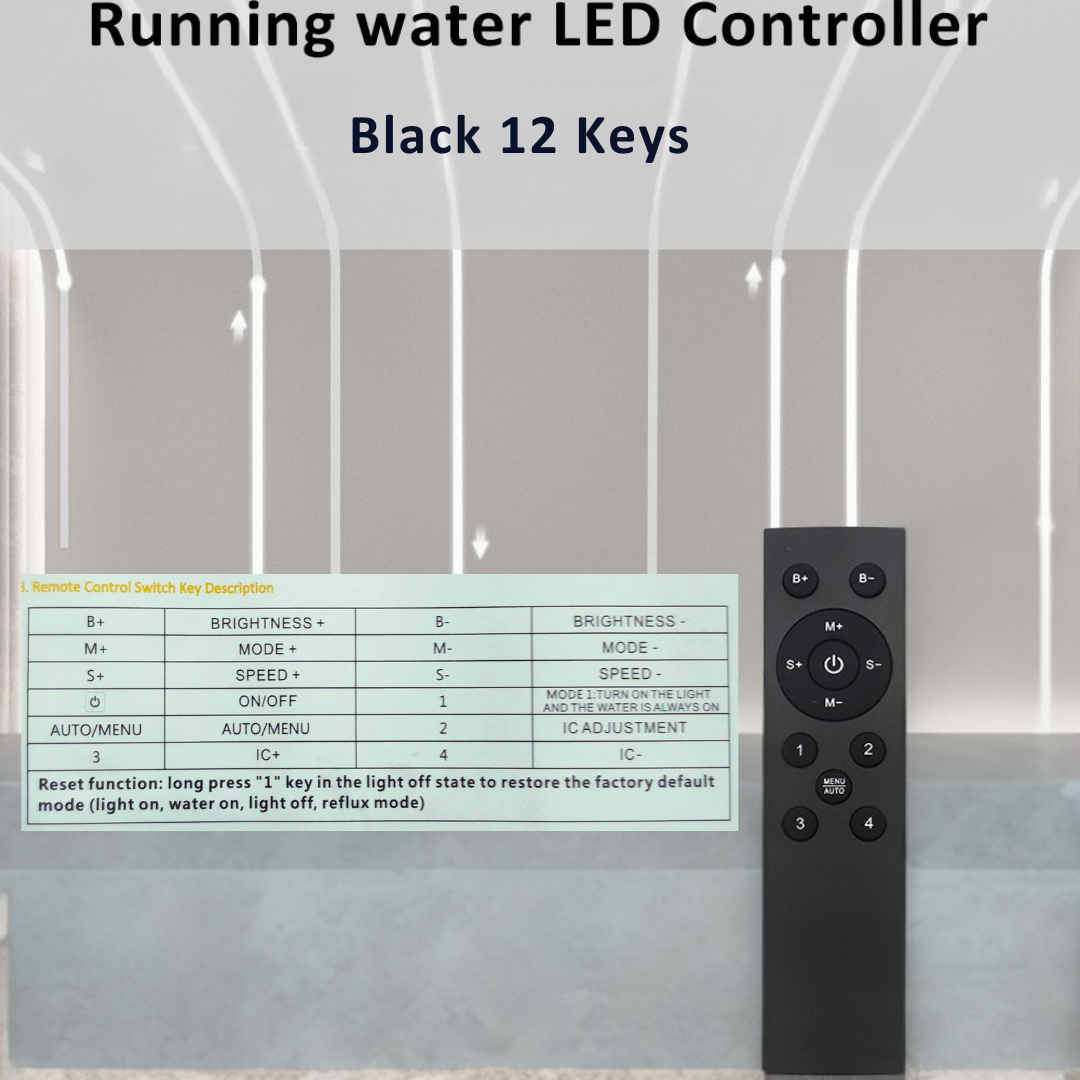

1. Versatile Control Options:

• Multiple Control Functions: The controller offers a variety of functions, including:
  • On/Off Switch
  • Brightness Control: Adjust the intensity of the light for the perfect ambiance.
  • Speed Control: Change the speed of the flowing water effect to suit your needs.
  • 20 Modes: Switch between over 20 dynamic lighting modes, including flowing water effects, and create the perfect atmosphere.
  • IC Adjustment

2. Pixel LED Flowing Water Controller:

• Control Points: Can control up to 2048 pixels, making it ideal for larger setups with extensive LED lighting installations.

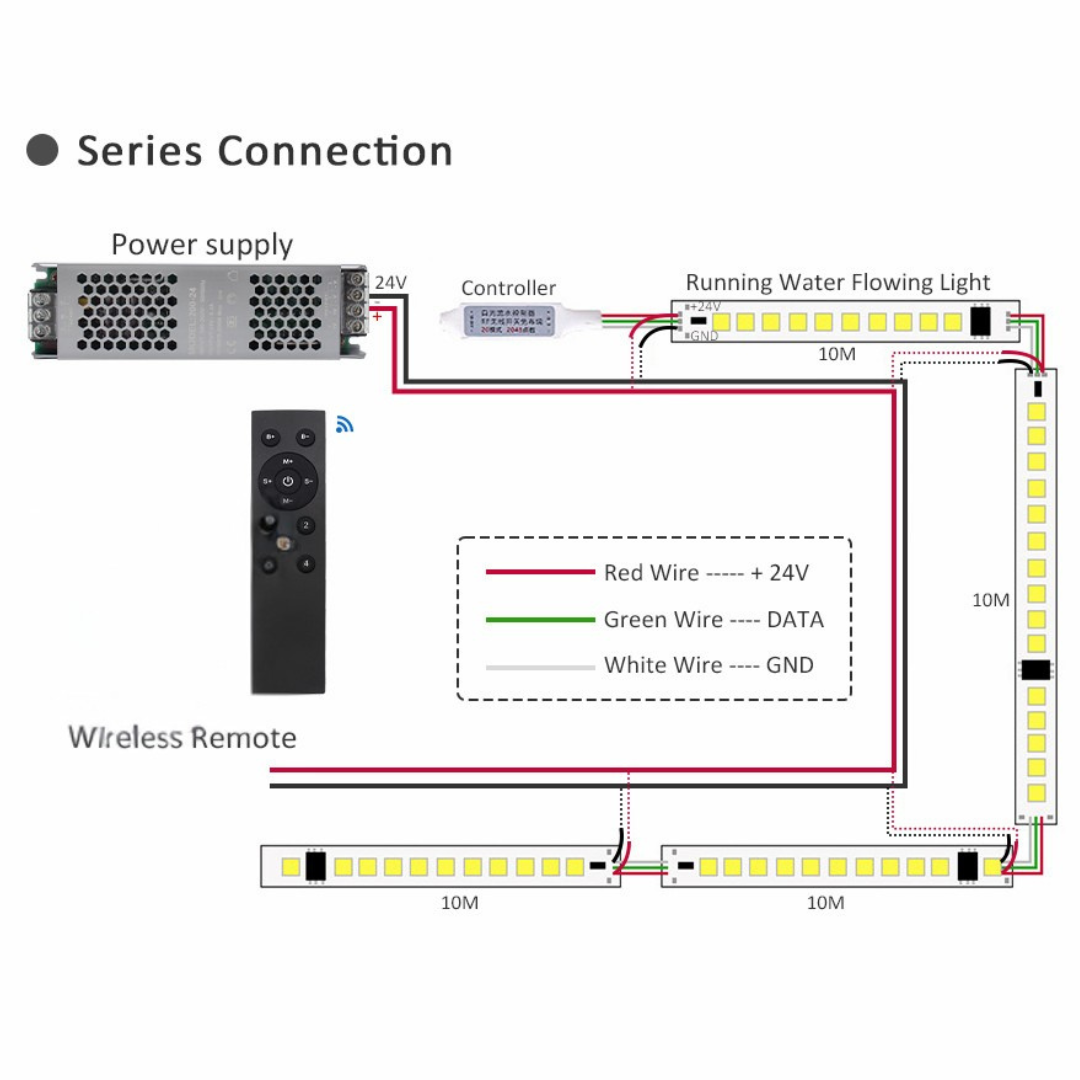

• Working Voltage: DC 12-24V, offering flexibility for a wide range of LED setups.

3. Enhanced Wireless Control:

• Remote Control Distance: The wireless controller offers a range of 15-20 meters, allowing you to control your lights from a comfortable distance.
• Battery-Powered Remote: The remote is powered by a 2xAAA Batteries for long-lasting use.

4. Adjustable Settings:

• Speed and Brightness Control:
  • Speed Adjustment: The speed can be adjusted in 10 levels (reduced in the startup state).
  • Brightness Adjustment: The brightness can be reduced in 10 levels in the shutdown state.
• Mode Switching: Switch between 20 preset lighting modes to suit different needs and occasions.

5. Easy Setup & Customization:

• Pixel Adjustment:
  • Point Adjustment Menu: In shutdown state, press the "2" key to enter the adjustment menu
  • Increase/Decrease Points: Press "3" to increase the IC, and press "4" to reduce the IC after adjustment , press "ON/OFF" key to save to exit.
  • Factory Default: The default factory setting is 80 pixels, but it can be adjusted up to 2048 pixels.

6. Code Matching & Clearing:

• Code Matching: If Multiple Controllers are used at the same time in the same place, and you don't want their remote controllers to interfere with each other , you need to learn and code the corresponding remote controllers of the controller.

  • First disconnect the controller from the unit , that is, unplug the power cord, and the controller and light bar will be completely powered off.
  • Press and hold the "M+" key, and then plug the controller into the power supply. The light bar flashes slowly and learning coding is successful . At this time, only the controller that has learned the coding can control the controller. A controller can learn two remote controllers, that is, colleagues are controlled by two remote controllers in linkage. Note that it is not a one-to-one match. If you want a one-to-one match, you should clear the code first and then learn.

• Code Clearing: If you need to clear the code to restore the common use of all remote controls, repeat the above methods, press and hold the "S+" key, plug in the power supply, that is, clear the code, the light bar flashes 3 times to restore the common use of all remote controls, and the controller defaults to the code clearing state.

Specifications:

• Working Voltage: DC 12-24V
• Control Points: Maximum of 2048 Pixels
• Remote Control Distance: 15-20 meters
• Battery Model for Remote: 2XAAA Batteries

Package Includes:

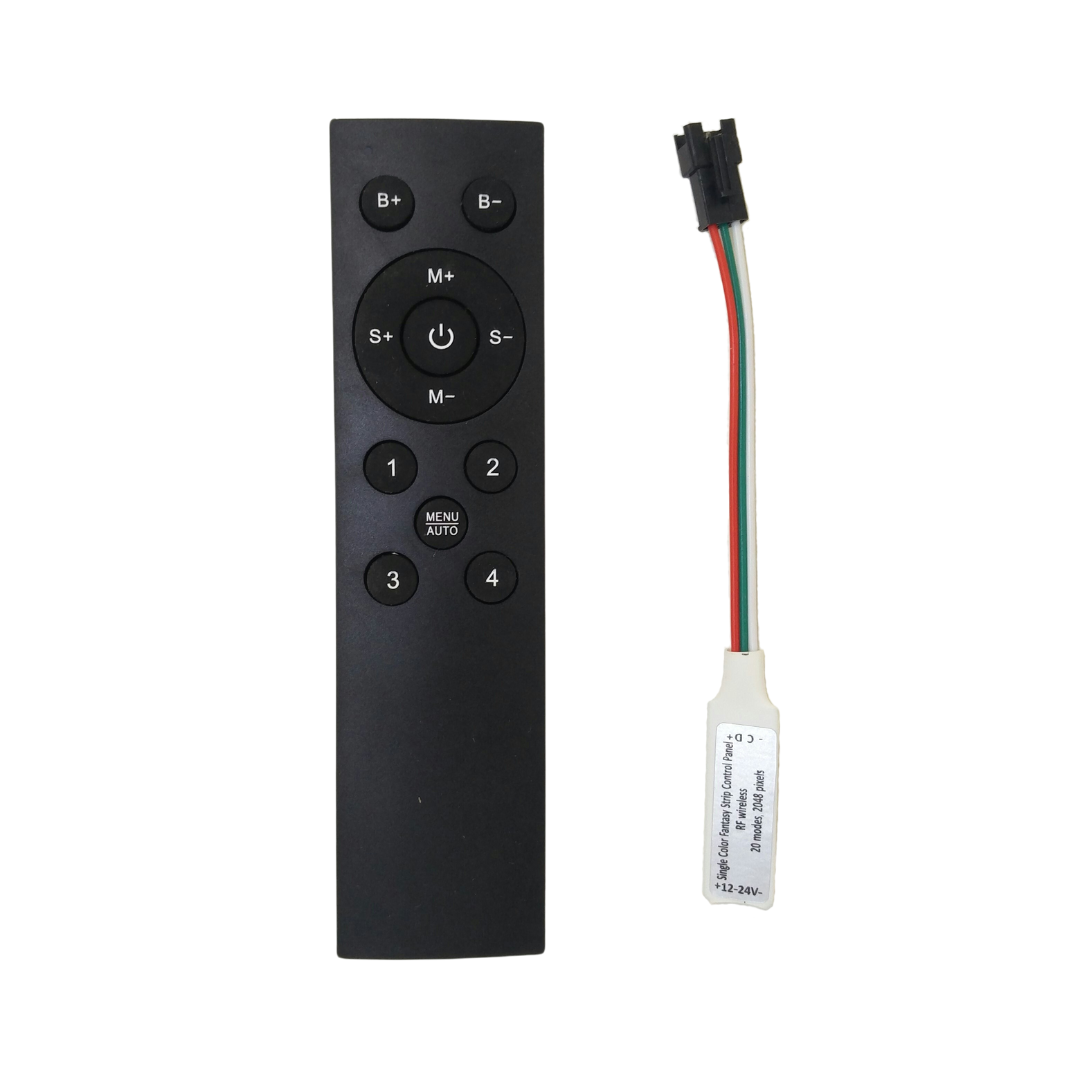

• 1x Wireless Controller
• 1x RF Controlled Wireless Panel

(Note: This is just the controller. The LED strip lights and driver are not included. For a full ready-to-use kit, please contact our support team.)

Why Choose This Controller?

• Seamless Control: With intuitive speed, brightness, and mode settings, this controller is perfect for creating dynamic, flowing water effects in your LED strip lights.
• Flexible and Scalable: Control up to 2048 pixels and adjust your setup to match your lighting needs.
• Wireless Convenience: Control your lights from a distance with the RF remote, offering a range of 15-20 meters.
• Easy Customization: Adjust points, modes, and settings easily to match your exact specifications.

Create Dynamic Lighting Effects Today!

Unlock the potential of your LED strip lights with the Running Flowing Water Wireless Controller. Whether you’re designing ambient lighting for your home or creating a dynamic light display, this controller gives you complete control. Contact our support team for a full kit and start transforming your space today!
