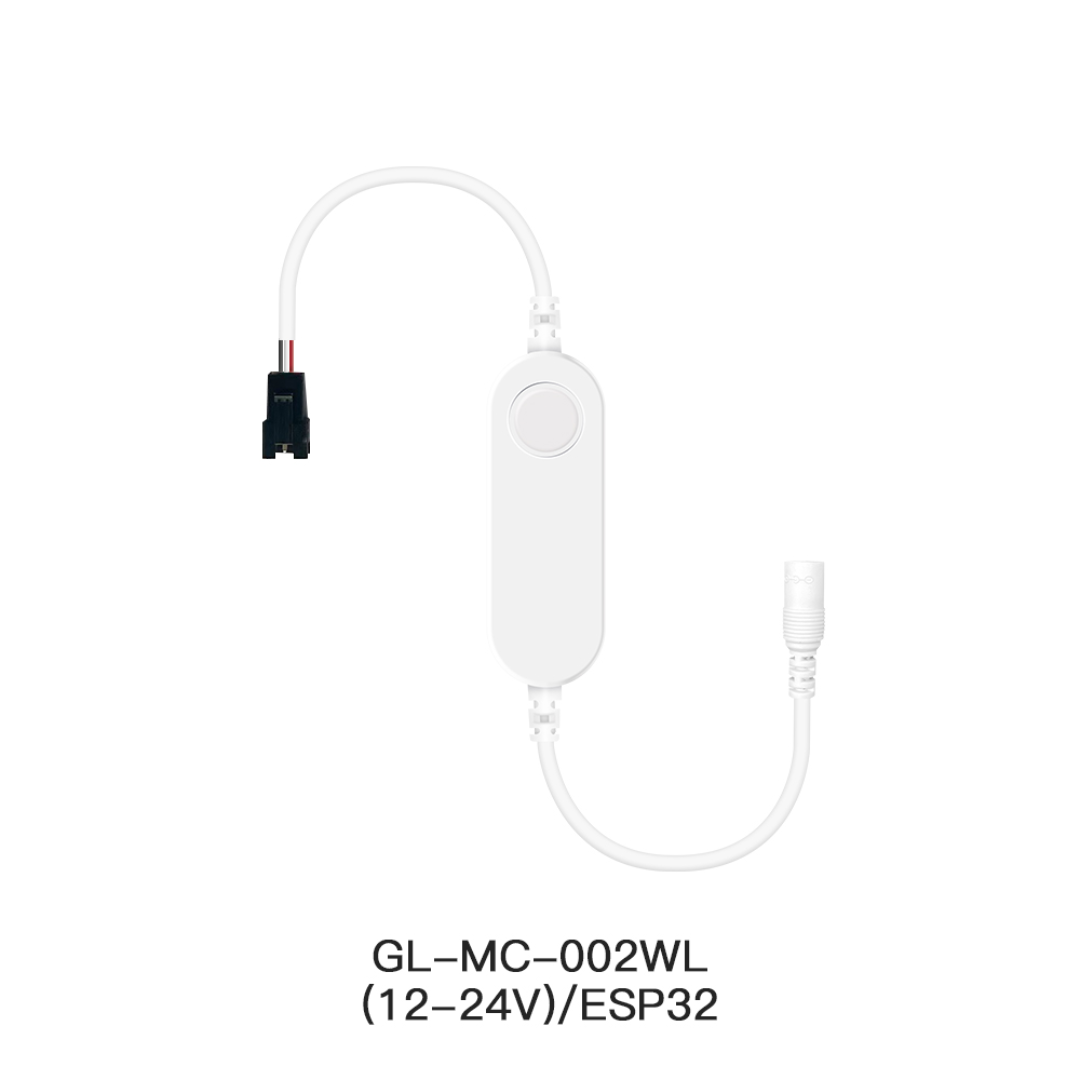

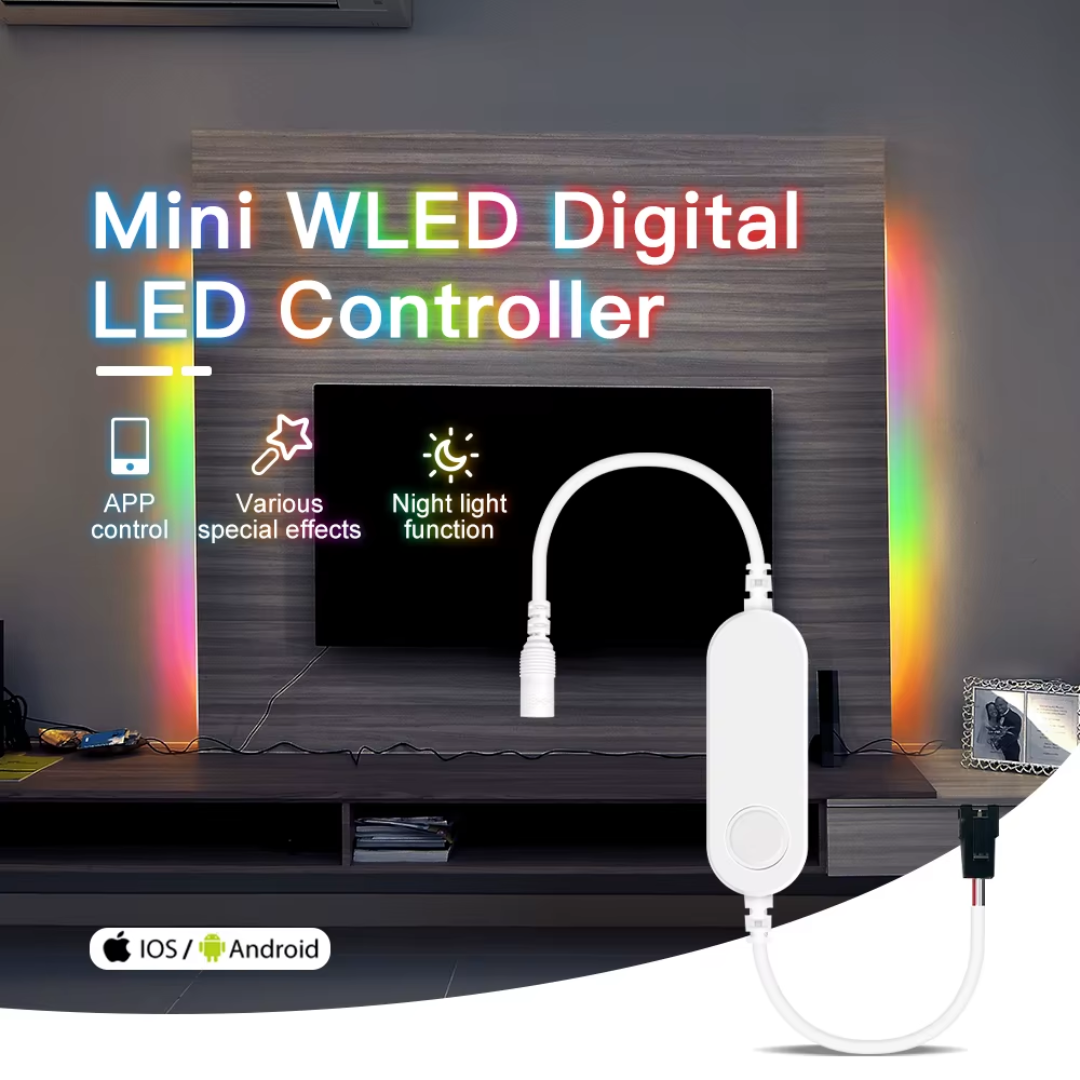

GLEDOPTO GL-MC-002WL Mini WLED Controller, DC 12V–24V

The GLEDOPTO GL-MC-002WL Mini WLED Controller is a compact, plug-and-play WiFi controller designed for 12V and 24V addressable LED strips. Unlike larger controllers with screw terminals, this mini controller features a 5.5×2.1mm DC barrel jack power input and a 3-pin JST output connector, making installation quick, clean, and beginner-friendly.

Powered by ESP32 and running WLED firmware, the GL-MC-002WL gives you access to over 100 lighting effects, customizable presets, playlists, scheduling, and real-time control through the WLED mobile app or web interface. A built-in microphone enables music-reactive lighting, while the single multifunction button lets you power the controller on/off, switch colors instantly, or perform a factory reset.

With support for up to 72W (3A @ 24V), this controller is ideal for compact lighting projects including shelf lighting, gaming setups, display cabinets, decorative fixtures, and DIY smart lighting installations.

Why Choose the GLEDOPTO GL-MC-002WL?

✔ Supports DC 12V & 24V Addressable LED Strips

✔ Plug-and-Play Barrel Jack Power Input (5.5×2.1mm)

✔ 3-Pin JST Output for quick and hassle-free wiring

✔ Built-in ESP32 with official WLED firmware

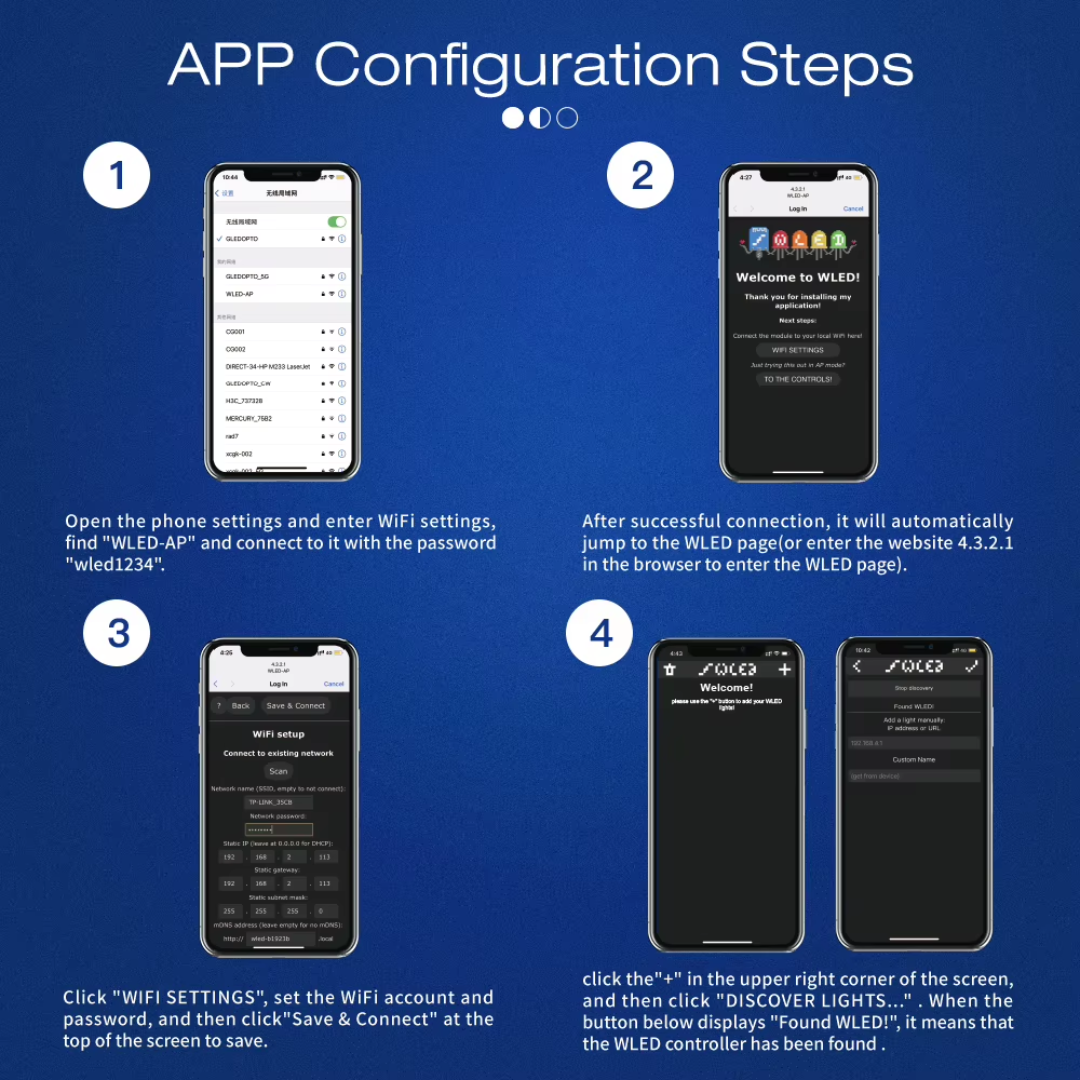

✔ WiFi Control via WLED App or Web Interface

✔ Music Sync using integrated microphone

✔ 100+ Dynamic Lighting Effects

✔ Create Custom Presets, Playlists & Schedules

✔ Compact 26g ABS Housing hides easily inside installations

✔ One-Button Operation for power, color change & factory reset

Perfect For

• Gaming desk lighting

• Shelf and cabinet illumination

• Display cases

• Decorative home lighting

• Moon lamps & custom lamp projects

• Accent lighting

• DIY electronics projects

• Small smart lighting installations

What's the Difference Between GL-MC-002WL & GL-MC-001WL?

Although both controllers share the same compact design and WLED functionality, they are designed for different voltage systems.

Choose the GL-MC-002WL if your LED strip requires a 12V or 24V power supply.

Key Features

DC 12V–24V Power Input

Compatible with both 12V and 24V addressable LED strip lights, making it suitable for longer runs and higher-voltage smart lighting installations.

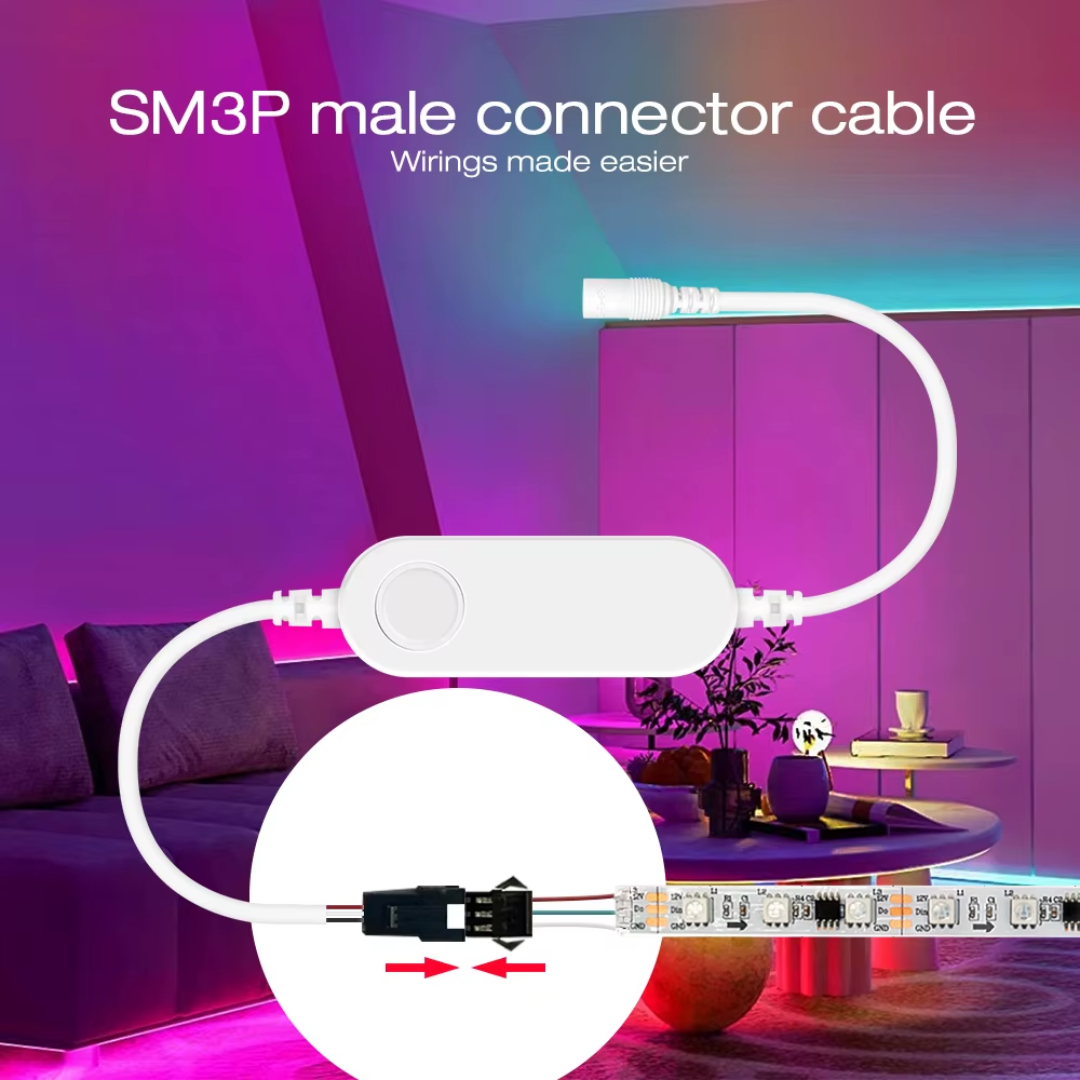

Plug-and-Play Installation

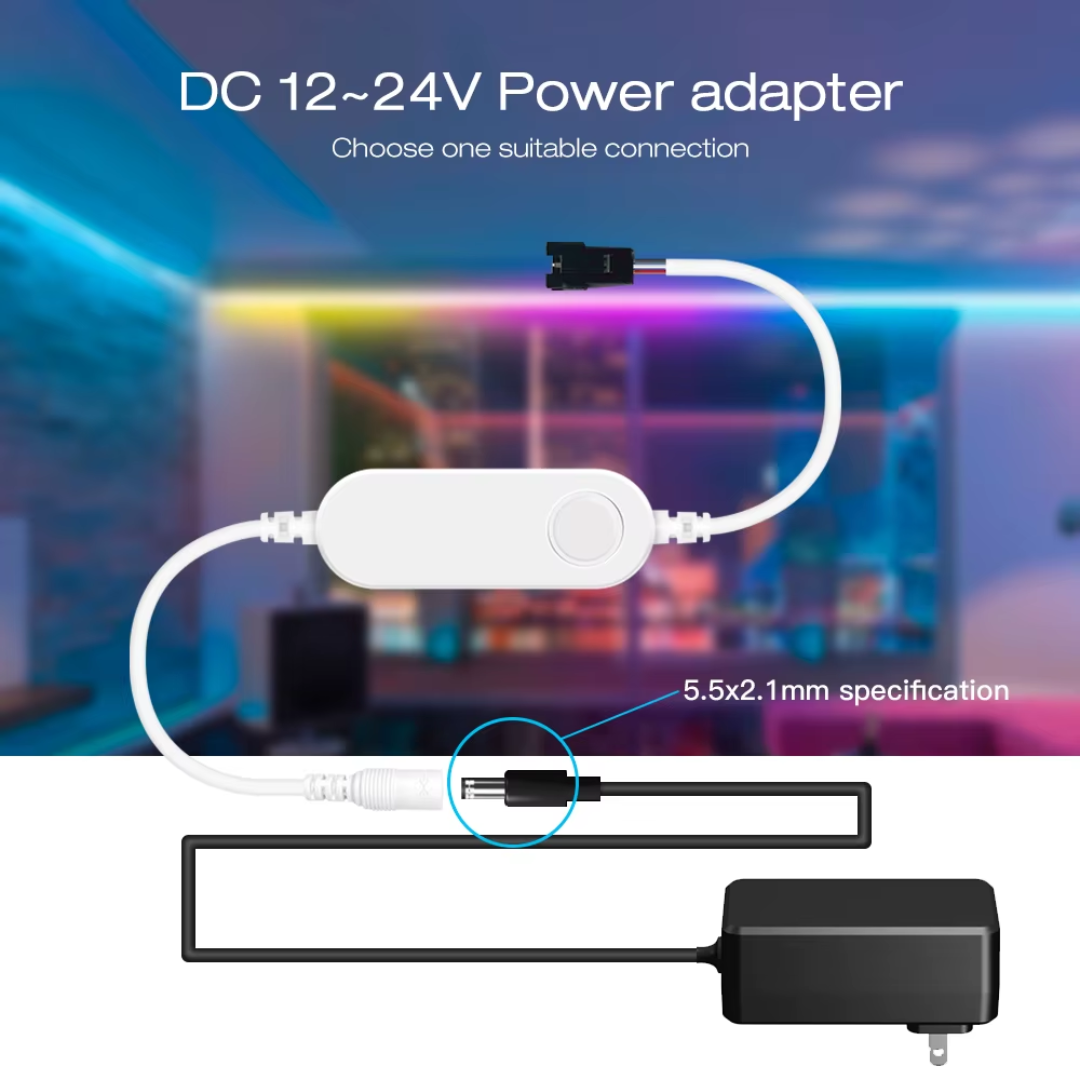

Uses a 5.5×2.1mm barrel jack for power input and a 3-pin JST connector for LED output—no screw terminals or complicated wiring required.

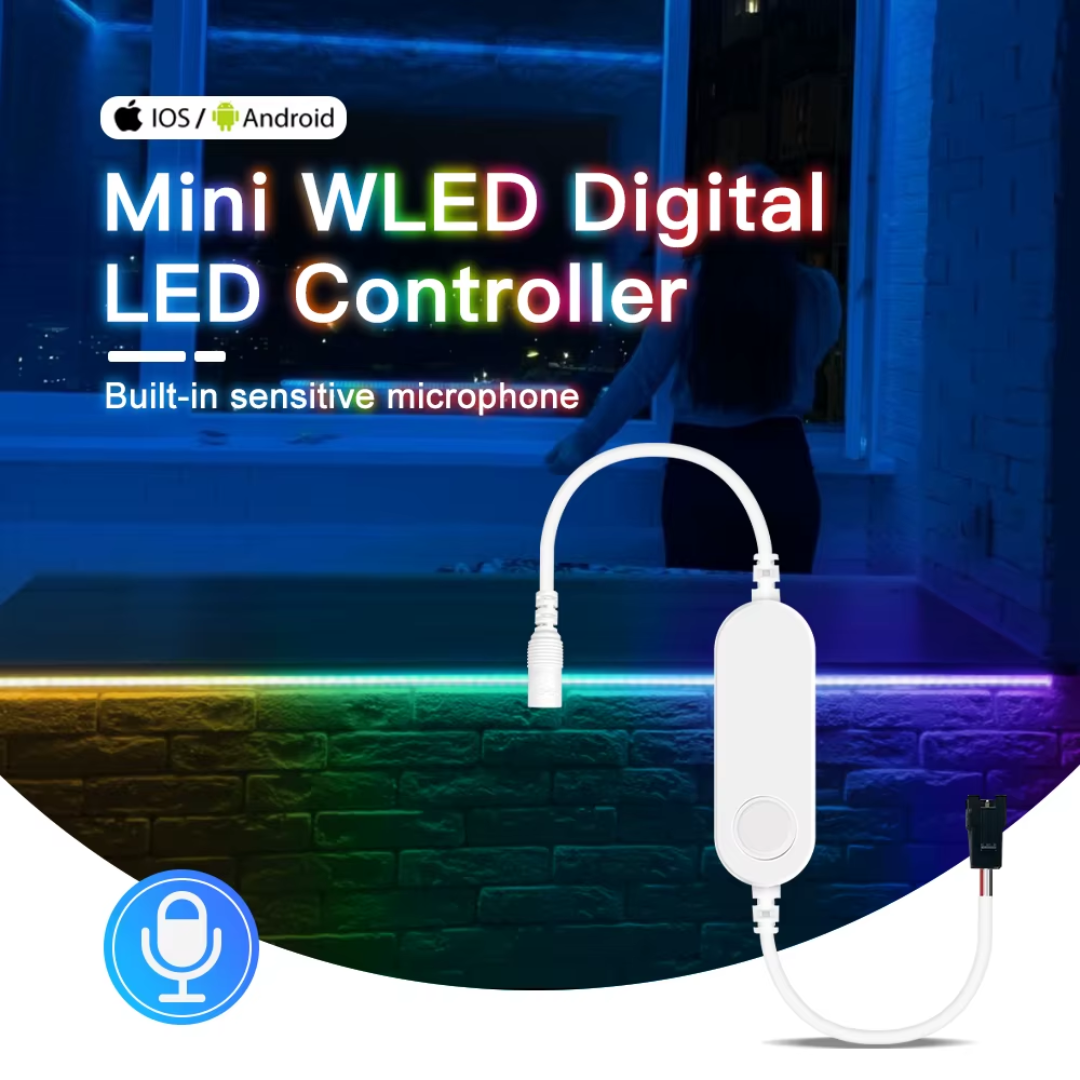

Built-in Music Synchronization

The integrated microphone enables lighting effects that react instantly to music, games, movies, and ambient sound.

Complete WLED Control

Enjoy the full power of WLED, including:

• 100+ preset effects

• Custom color palettes

• Segments & zones

• Playlists

• Scheduling

• Brightness control

• Web interface access

• Mobile app control

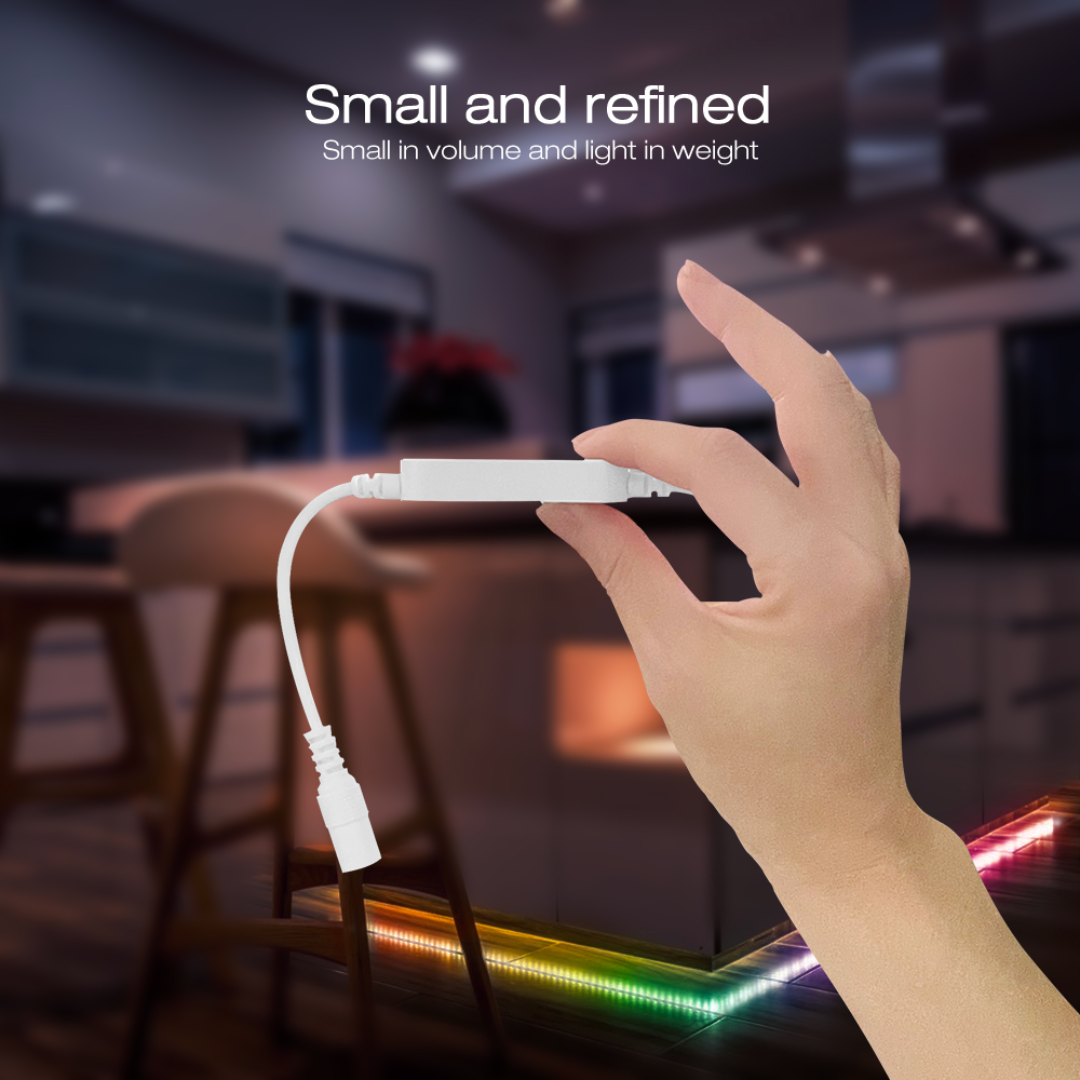

Compact Design

Weighing only approximately 26g, the controller fits easily inside furniture, lighting fixtures, display cabinets, and custom enclosures.

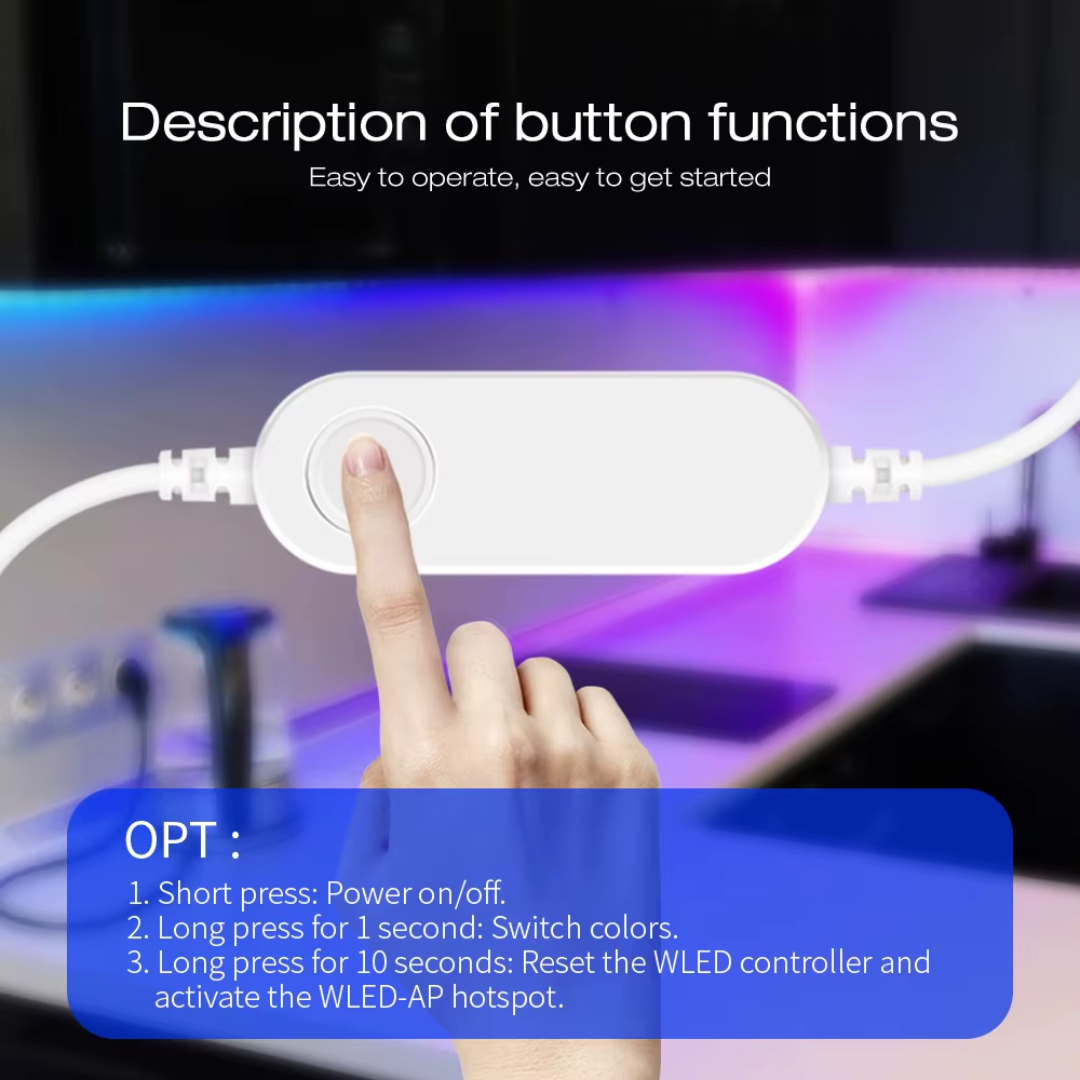

One-Button Smart Control

• Short Press: Power ON/OFF

• Press & Hold (1 Second): Quick Color Change

• Press & Hold (10 Seconds): Factory Reset

Technical Specifications

Compatible LED Chipsets

The GL-MC-002WL supports most popular SPI addressable LED strips, including:

• WS2811

• WS2812

• WS2812B

• SK6812

• Other WLED-compatible addressable LED chipsets

Applications

The GL-MC-002WL is ideal for:

• Shelf lighting

• Display cabinets

• TV backlighting

• Gaming room lighting

• Bedroom ambient lighting

• Decorative installations

• DIY smart lighting

• Home décor projects

• Custom lamp builds

• Small commercial displays

Frequently Asked Questions

What is the difference between GL-MC-002WL and GL-MC-001WL?

The GL-MC-002WL operates on DC 12V or 24V using a barrel jack power connector, while the GL-MC-001WL is powered via USB 5V. Always choose the controller that matches your LED strip's operating voltage.

What is the maximum load supported?

The controller supports up to 72W (3A at 24V), making it ideal for compact lighting installations and shorter LED strip runs.

Do I need to solder any wires?

No. The controller uses a plug-and-play barrel jack for power input and a 3-pin JST connector for LED output, making installation quick and straightforward.

Can I use the controller without the WLED app?

Yes. The built-in button allows you to switch the controller on or off and change colors quickly. For advanced effects, presets, playlists, and scheduling, use the WLED app or web interface.

Does this require a smart home hub?

No. The GL-MC-002WL connects directly to your WiFi network and can be controlled using the WLED mobile app or browser without requiring any additional hub.

Which LED strips are compatible?

It supports most SPI addressable LED strips, including WS2811, WS2812, WS2812B, SK6812, and other LED chipsets supported by WLED.

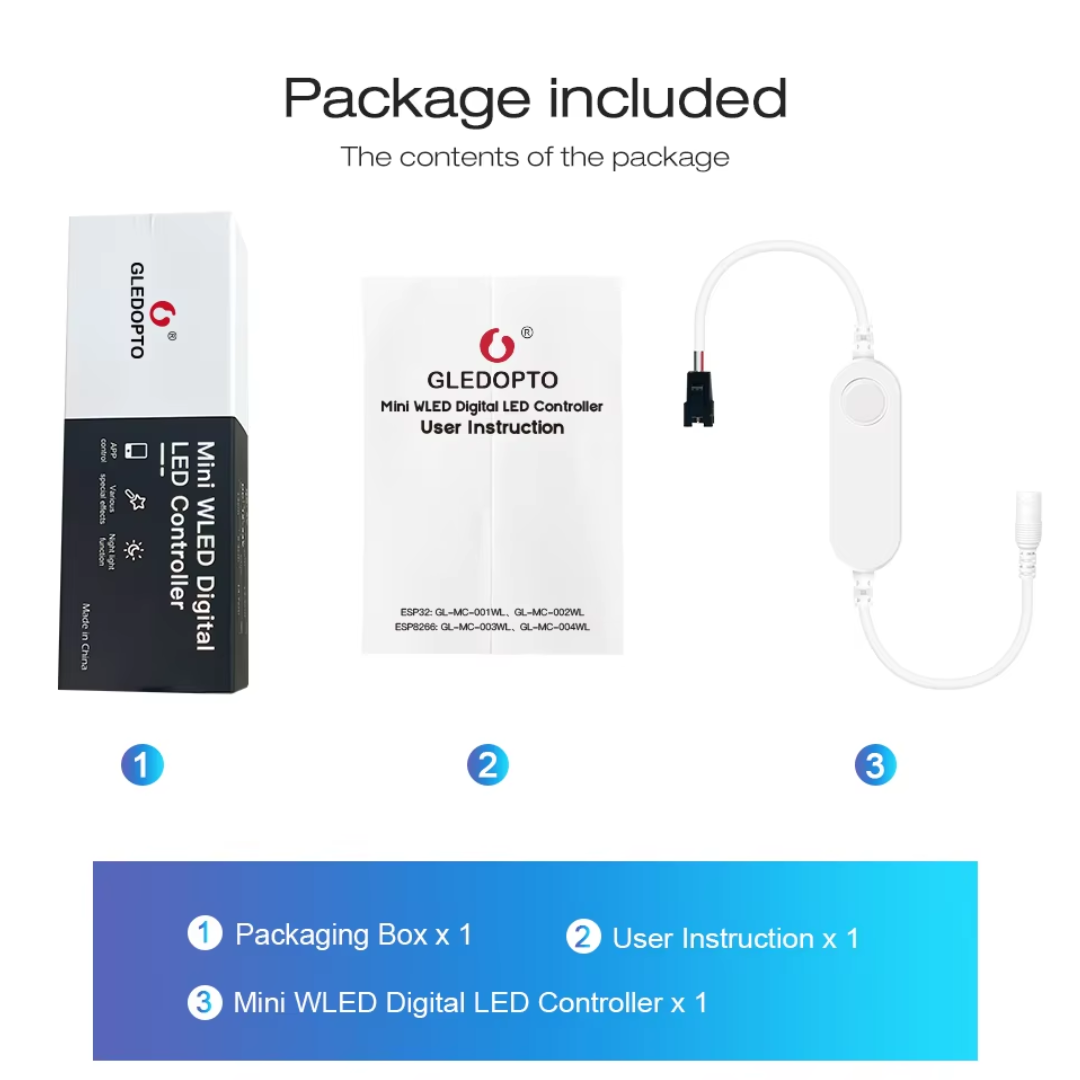

Package Includes

• 1 × GLEDOPTO GL-MC-002WL Mini WLED Controller

• User Manual

Why Buy from Chronos Lights?

• Genuine GLEDOPTO Products

• Fast Shipping Across India

• Expert Technical Support

• Trusted LED Lighting Specialists

• Ideal for DIY Enthusiasts, Home Users & Professionals

Upgrade your 12V or 24V addressable LED strips with the GLEDOPTO GL-MC-002WL Mini WLED Controller and enjoy intelligent WiFi control, music synchronization, and the full power of WLED in a compact plug-and-play design.
