GLEDOPTO GL-C-620WL Hybrid WLED Controller, Digital + PWM, WiFi & Ethernet

The GLEDOPTO GL-C-620WL Hybrid WLED Controller is an advanced ESP32-powered smart LED controller designed to operate both addressable (SPI/RGBIC) and PWM LED strips from a single device. Unlike conventional WLED controllers that support only one lighting protocol, the GL-C-620WL features 1 Digital SPI Output and 2 PWM Channels, allowing you to control RGBIC pixel lighting alongside single-color or CCT tunable white lighting simultaneously.

Supporting DC 5V, 12V, and 24V, the controller delivers up to 15A total output (360W Max) and drives up to 1,600 addressable pixels. With both 2.4GHz WiFi and RJ45 Ethernet connectivity, it offers flexible installation for residential, commercial, and hospitality projects where reliable network connectivity is essential. Built-in music synchronization, USB Type-C configuration, and the powerful WLED firmware provide complete control over effects, playlists, presets, scheduling, and automation—all without requiring a separate smart hub.

Why Choose the GLEDOPTO GL-C-620WL?

✔ Hybrid Controller with 1 Digital SPI Output + 2 PWM Channels

✔ Simultaneously controls RGBIC + Single Color/CCT LED Strips

✔ Supports DC 5V / 12V / 24V LED systems

✔ Drives up to 1,600 Addressable Pixels

✔ High Power Output – 15A Total / 360W Maximum

✔ Dual Connectivity: 2.4GHz WiFi & RJ45 Ethernet

✔ Built-in Music Sync Microphone

✔ Official ESP32 WLED Firmware

✔ USB Type-C for configuration and firmware updates

✔ GPIO Expansion (IO13) for external switches, sensors & relays

✔ No additional smart hub required

Perfect For

• RGBIC + CCT lighting projects

• Smart home automation

• Cove lighting

• Architectural lighting

• Home theatres

• Hotels & hospitality projects

• Retail lighting

• Commercial installations

• Gaming rooms

• High-end residential lighting

• Mixed LED strip installations

• Professional lighting control systems

What Makes the GL-C-620WL Different?

Most smart LED controllers force you to choose between addressable RGBIC lighting or PWM-controlled single-color/CCT lighting.

The GL-C-620WL eliminates that limitation by allowing both lighting technologies to operate simultaneously from a single controller.

This means you can run:

• RGBIC cove lighting

• Tunable White ceiling lights

• Warm & Cool White task lighting

• Decorative pixel lighting

• Accent lighting

—all synchronized through the same WLED interface, using the same presets, schedules, and music effects.

For installers, this reduces wiring complexity, saves controller space, and simplifies smart lighting automation.

Key Features

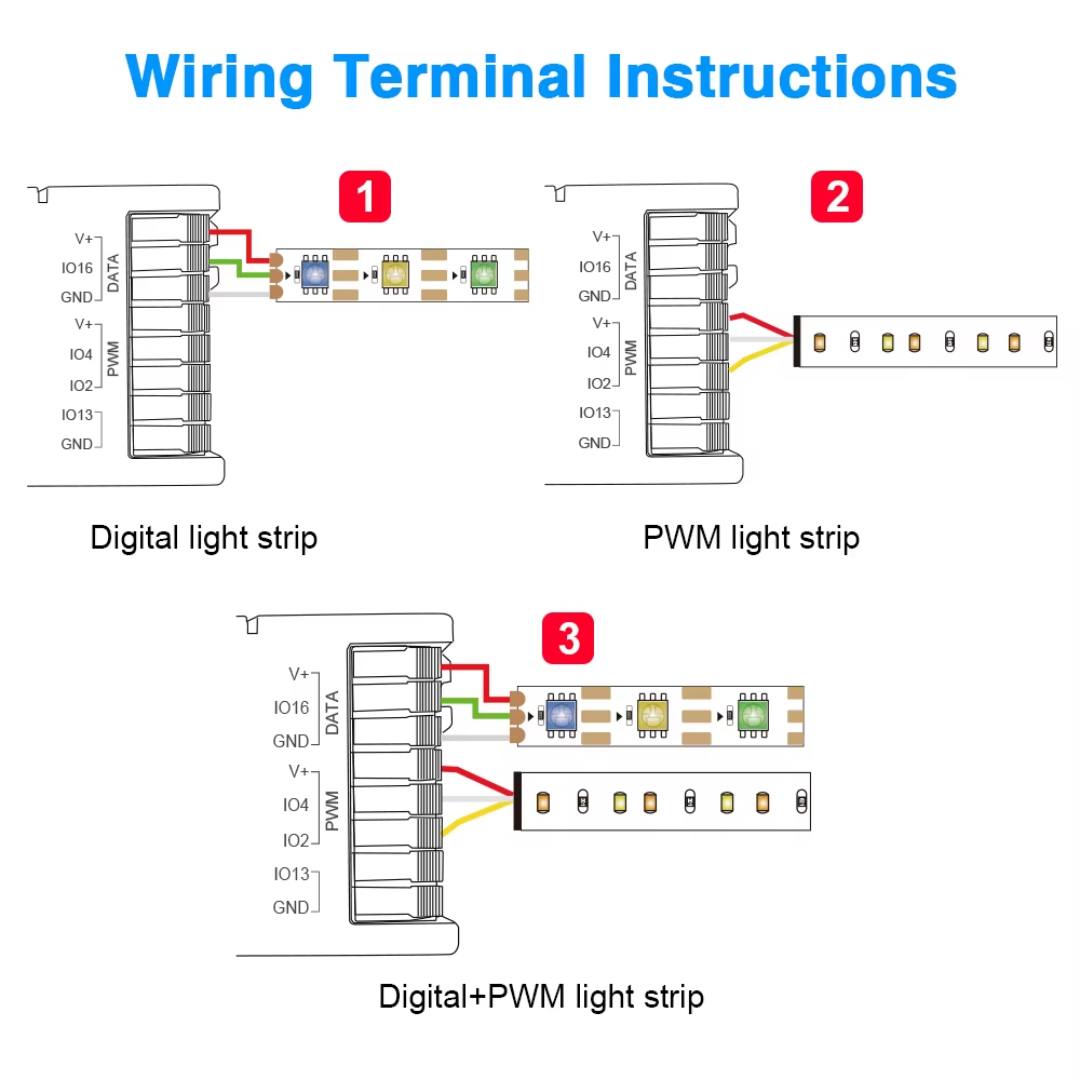

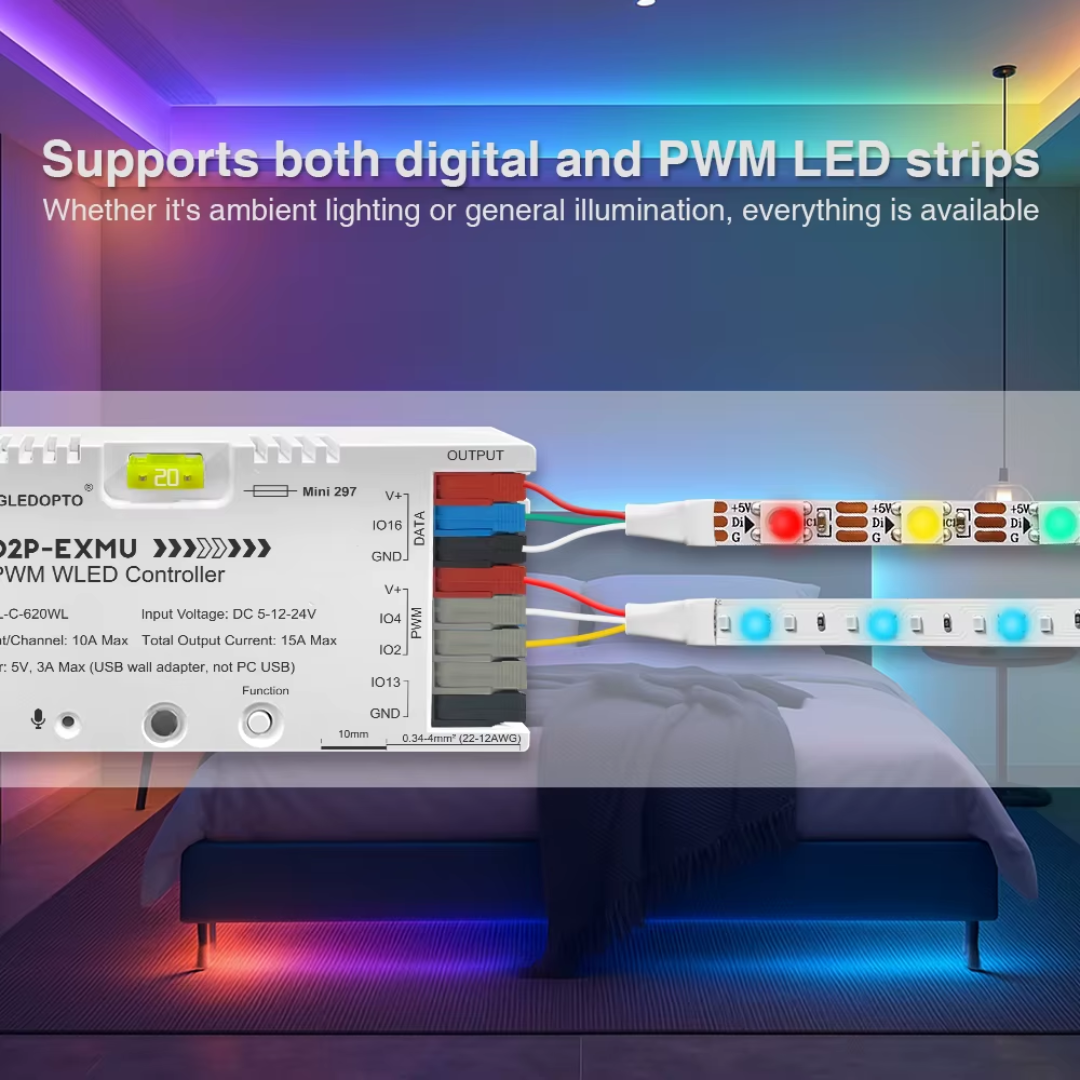

Hybrid Digital + PWM Control

Unlike traditional controllers, the GL-C-620WL combines:

• 1 SPI Digital Output

  • Up to 1,600 Addressable Pixels

• 2 PWM Outputs

  • Single Color LED Strips

  • Tunable White (CCT) LED Strips

Everything is managed from one controller.

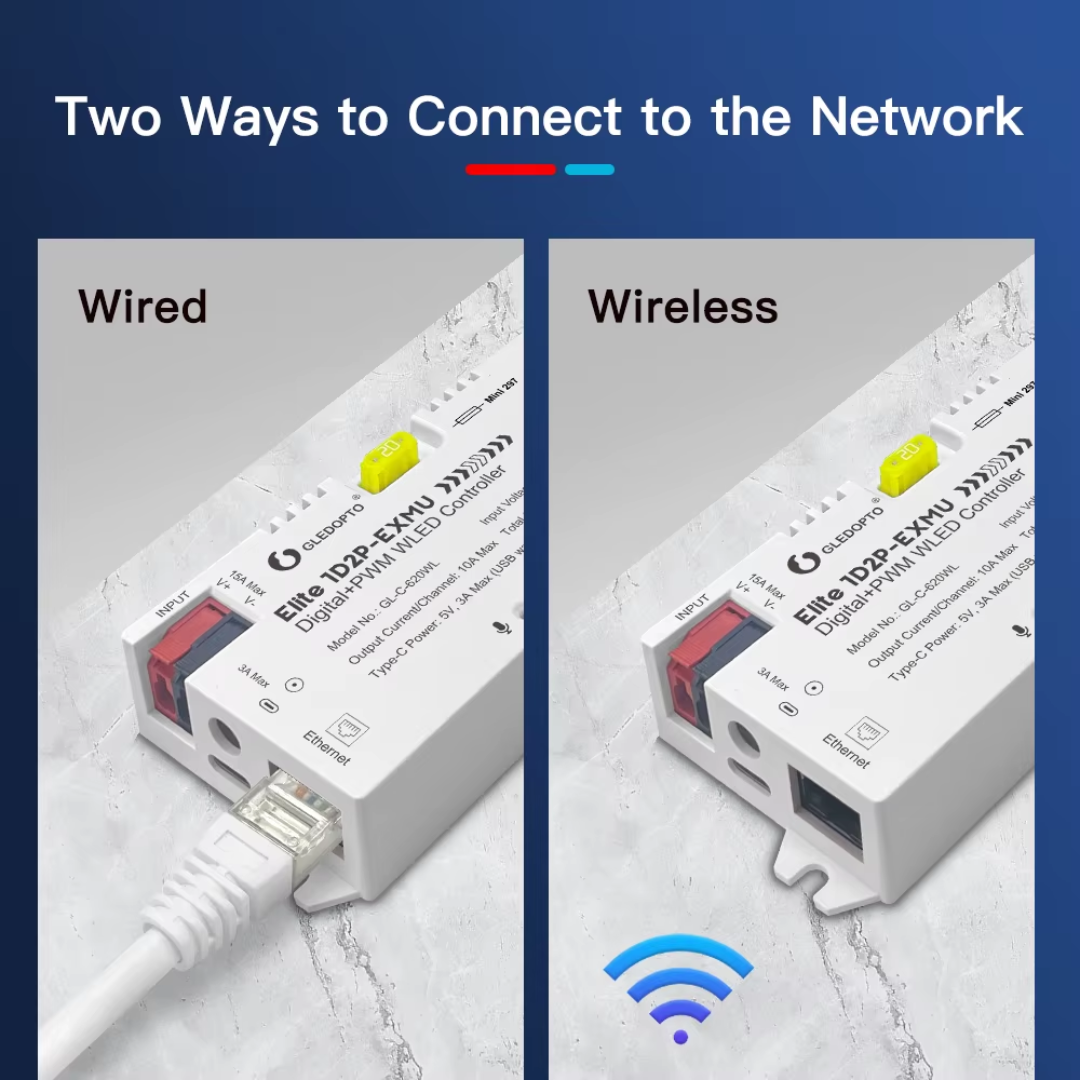

Dual Network Connectivity

Choose the connection that best fits your installation:

WiFi

Ideal for:

• Homes

• Gaming rooms

• DIY projects

• Small commercial spaces

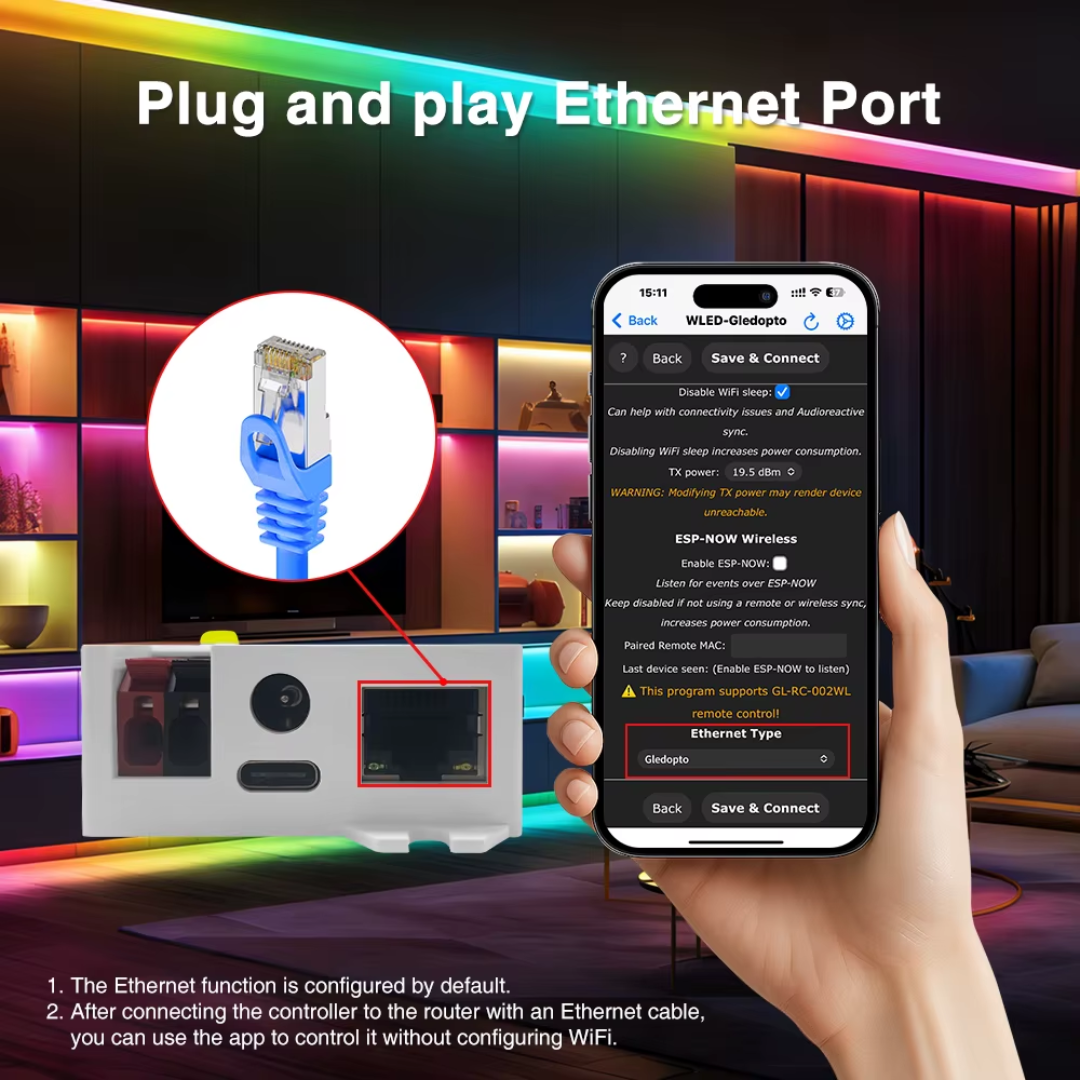

Ethernet (RJ45)

Perfect for:

• Hotels

• Offices

• Commercial buildings

• Smart homes

• Network-controlled lighting

• Installations where maximum stability is required

Ethernet provides lower latency and eliminates wireless interference in demanding environments.

High Power Performance

Supports:

• DC 5V

• DC 12V

• DC 24V

Maximum Output:

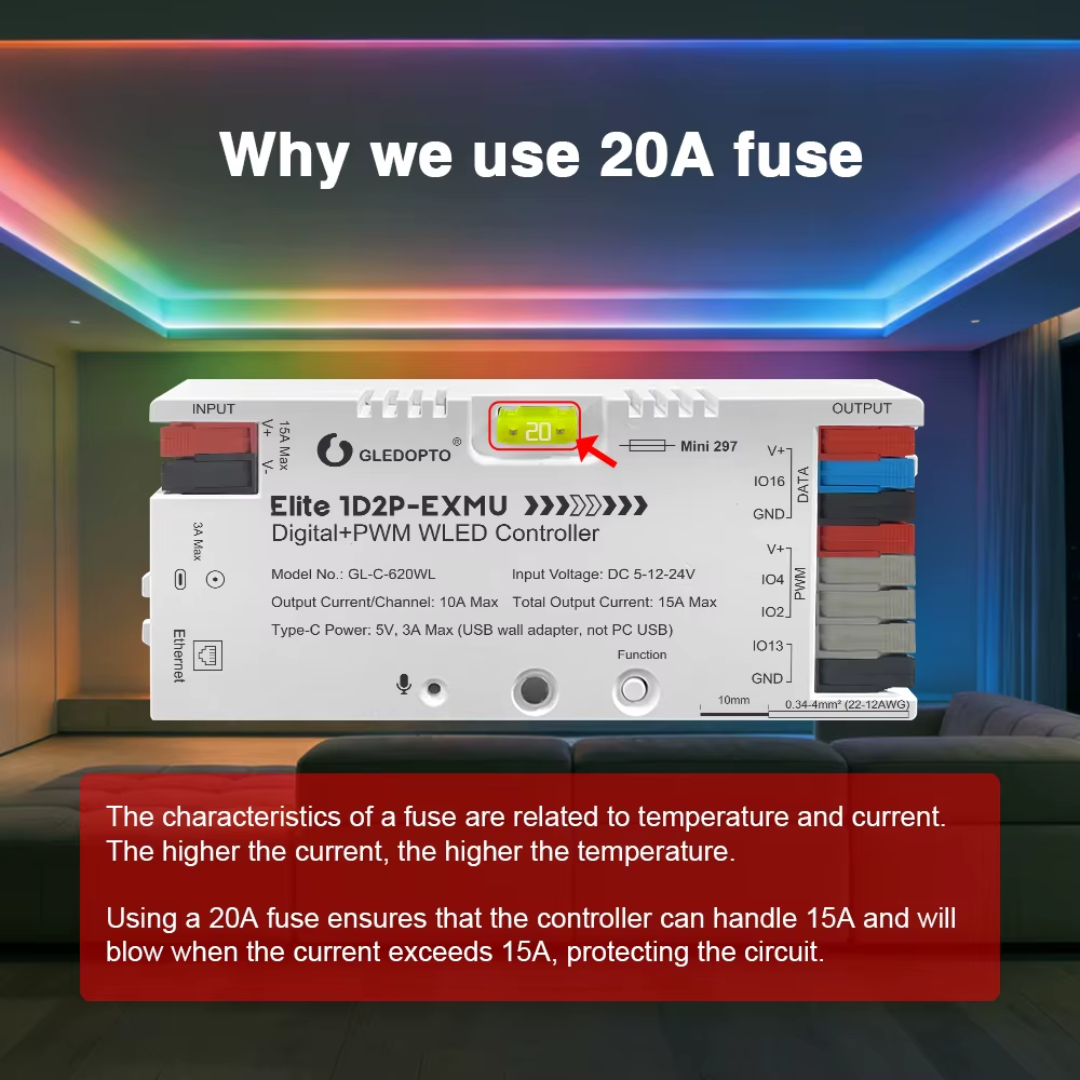

• 15A Total Current

• 360W Maximum Load

Suitable for larger lighting installations while maintaining reliable performance.

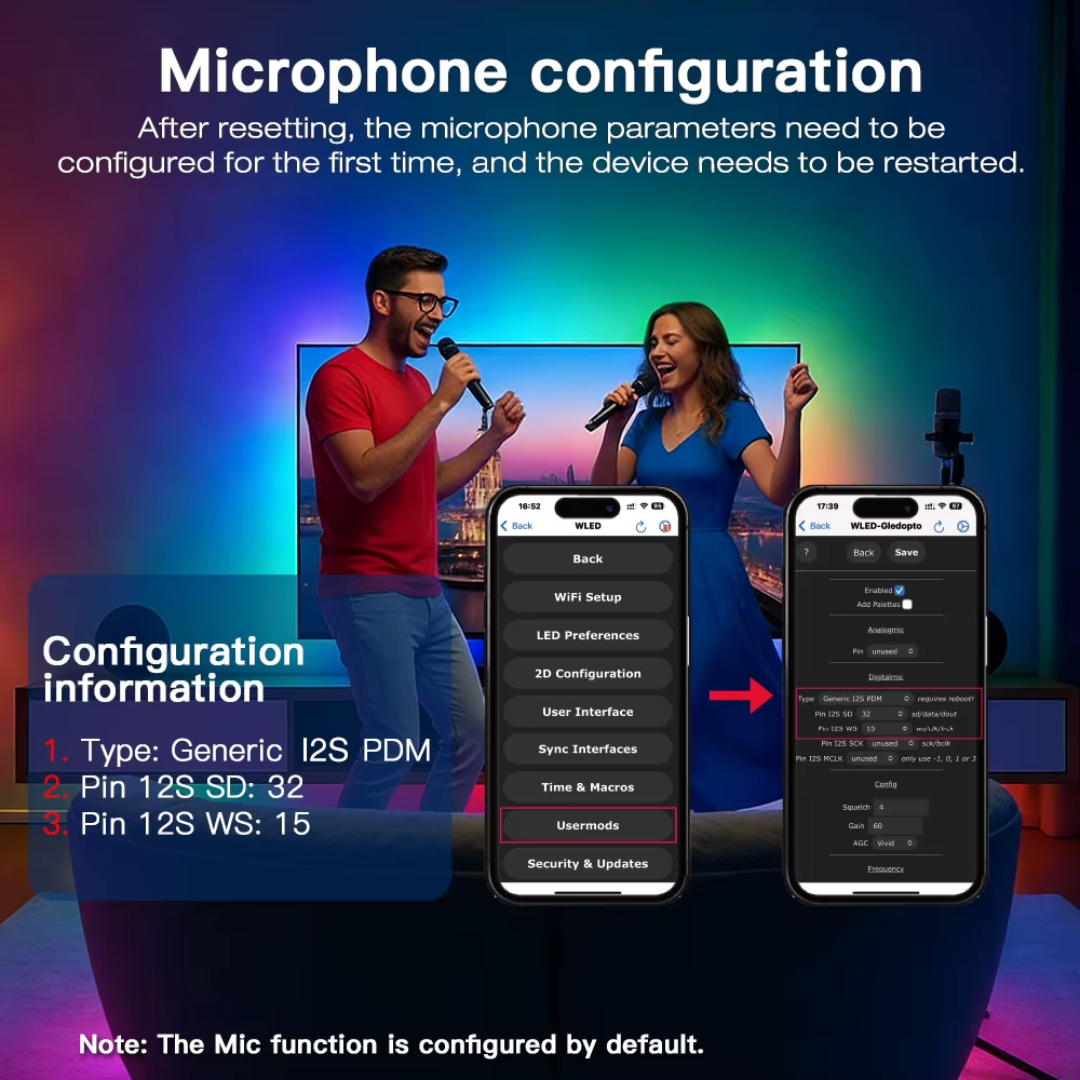

Built-in Music Synchronization

The integrated microphone enables real-time music-reactive lighting across both digital and PWM outputs simultaneously, creating synchronized visual effects for music, movies, gaming, and entertainment spaces.

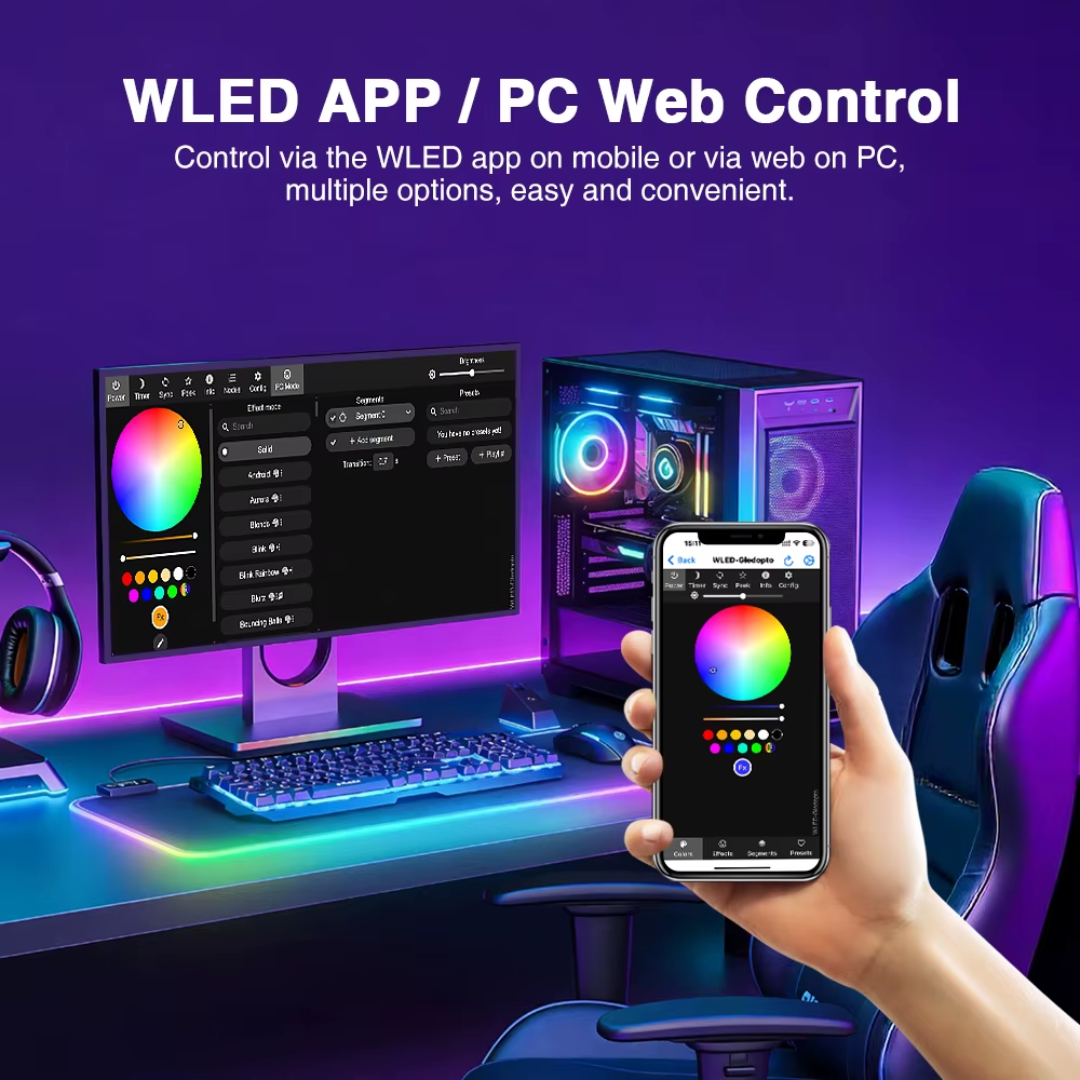

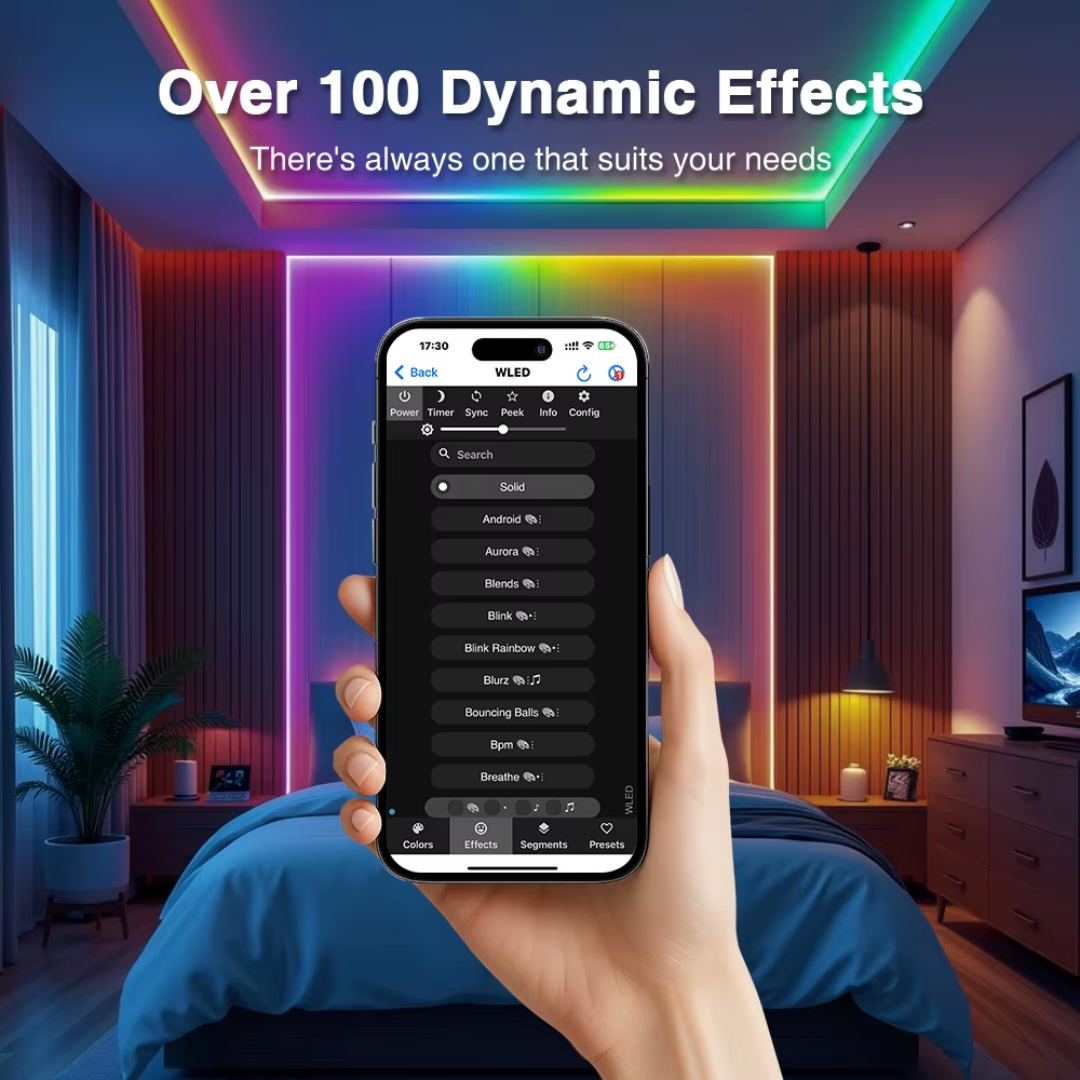

Complete WLED Smart Control

Powered by the official WLED firmware, you gain access to:

• 100+ lighting effects

• Segments & zones

• Custom color palettes

• Brightness control

• Presets

• Playlists

• Automation

• Scheduling

• Web interface

• Mobile app control

• OTA firmware updates

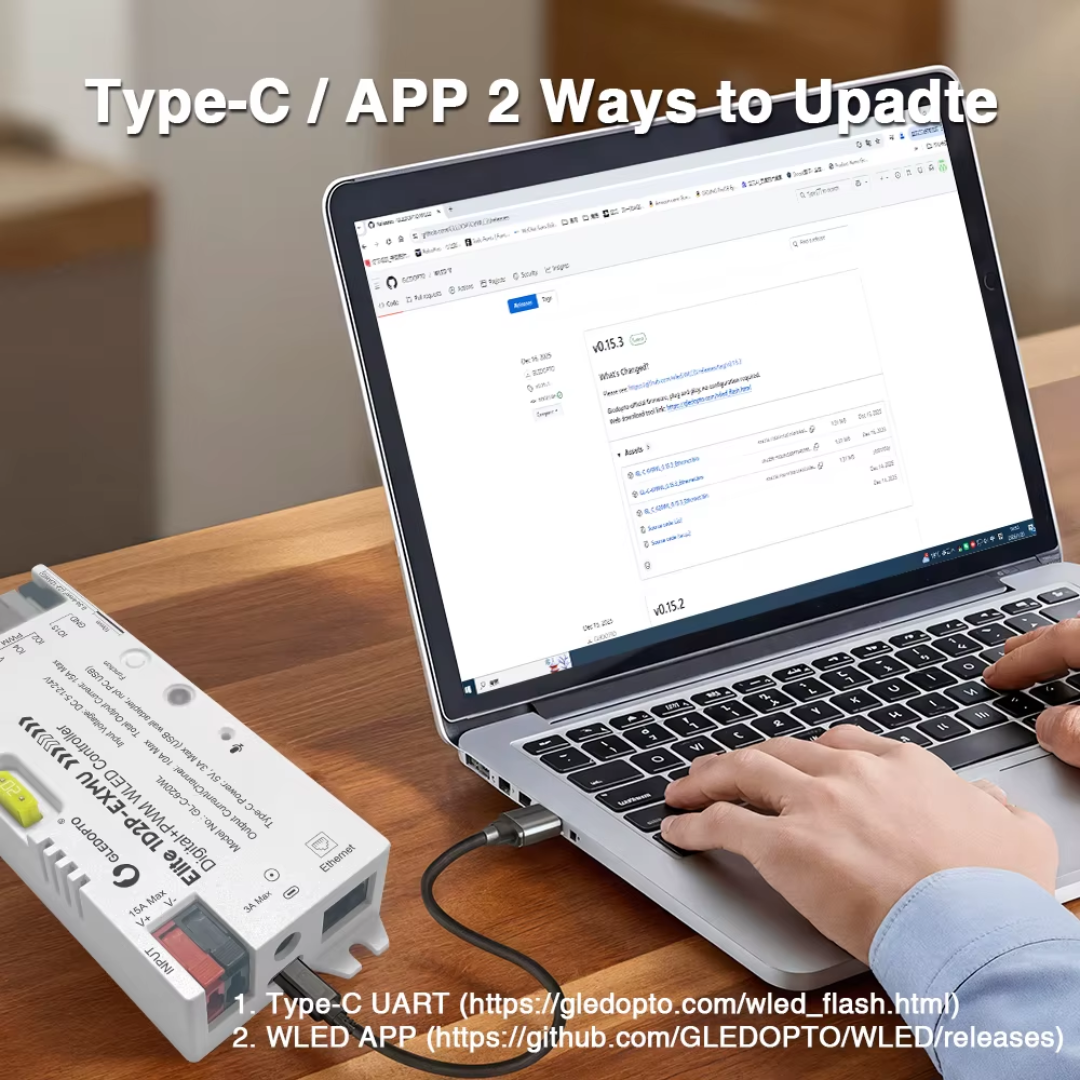

USB Type-C Configuration

The integrated USB Type-C port allows:

• Firmware updates

• Configuration

• Initial setup

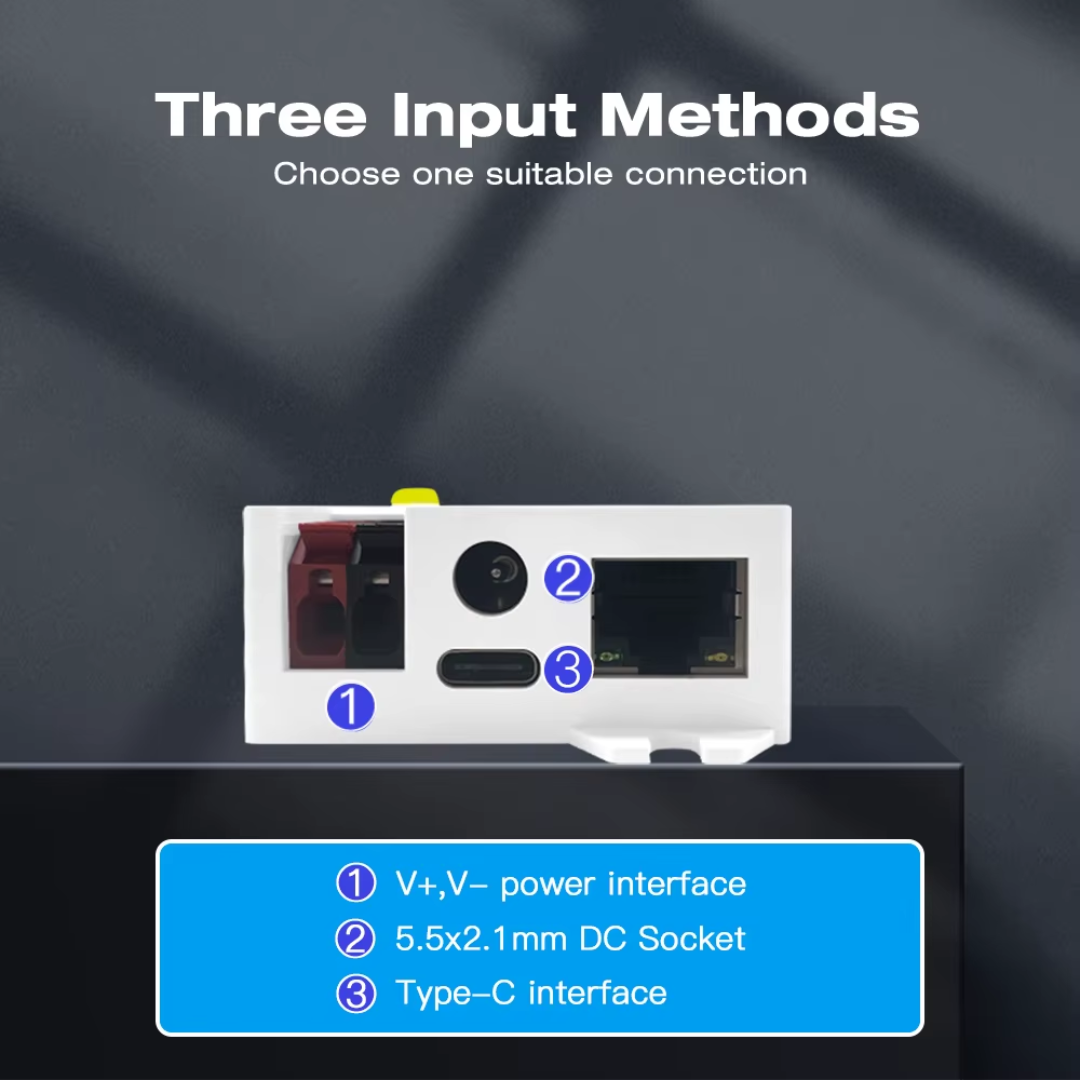

• 5V/3A power input when required

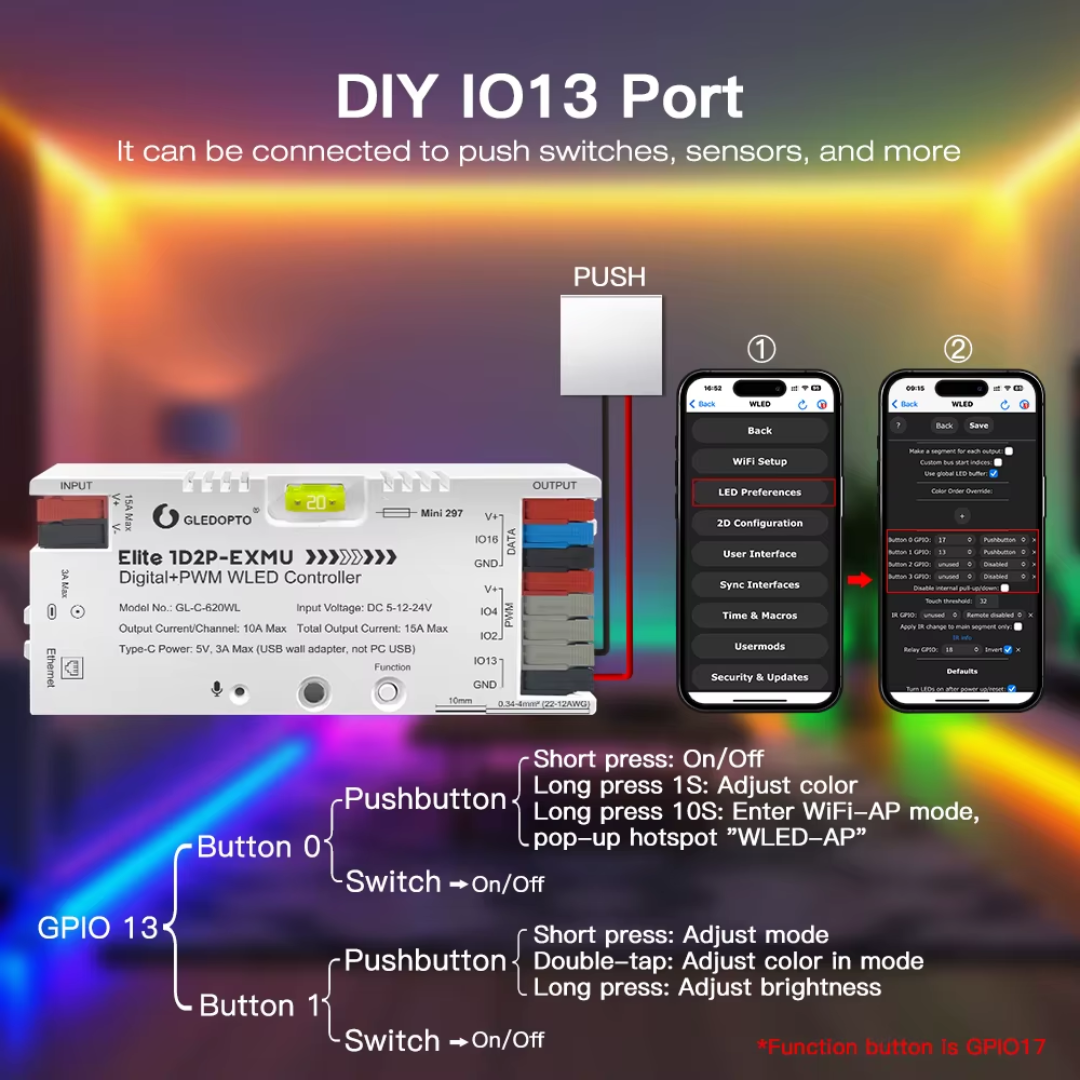

GPIO Expansion

The IO13 GPIO pin allows integration with:

• External switches

• Push buttons

• Motion sensors

• Smart relays

• Home automation accessories

Ideal for advanced DIY and professional automation projects.

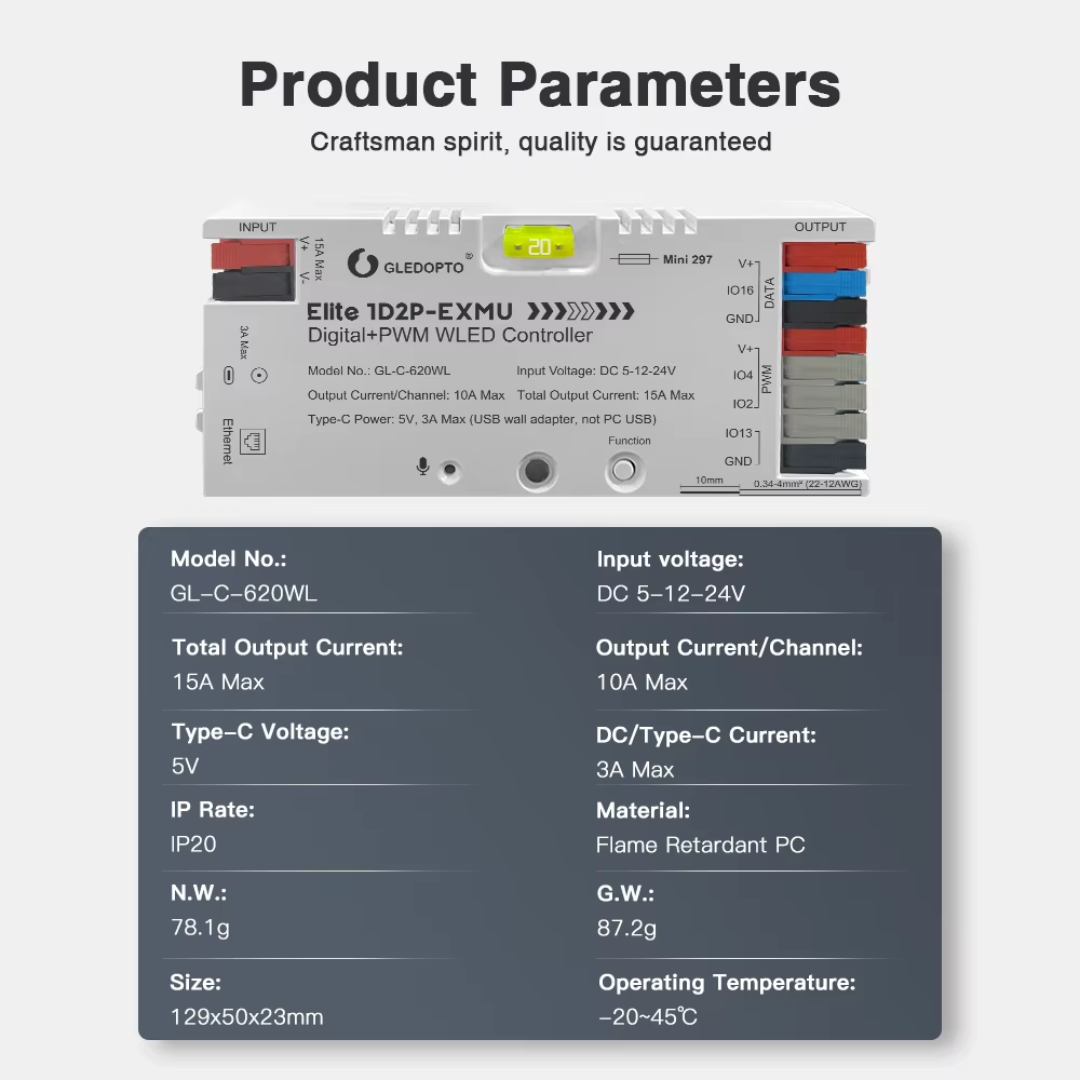

Technical Specifications

Compatible LED Chipsets

The SPI output supports most popular addressable LED chipsets, including:

• WS2811

• WS2812

• WS2812B

• SK6812

• WS2815

• APA102

• Other WLED-compatible SPI LED strips

The PWM outputs support:

• Single Color LED Strips

• Warm White LED Strips

• Cool White LED Strips

• Tunable White (CCT) LED Strips

Applications

The GL-C-620WL is ideal for:

• Smart homes

• Home theatres

• Gaming rooms

• Retail stores

• Hotels

• Restaurants

• Architectural lighting

• Office lighting

• Cove lighting

• Ceiling lighting

• Display lighting

• Commercial LED installations

• Professional RGBIC + CCT projects

Frequently Asked Questions

What makes the GL-C-620WL different from standard WLED controllers?

The GL-C-620WL is a hybrid controller that simultaneously controls one digital (SPI) LED strip and one PWM lighting system (single-color or CCT) from a single device. Most WLED controllers support only one lighting protocol.

Do I need Ethernet, or is WiFi enough?

For most home installations, WiFi is sufficient. Ethernet is recommended for commercial, hospitality, and large smart lighting projects where maximum network stability and low latency are important.

How many addressable pixels can it control?

The digital SPI output supports up to 1,600 addressable LED pixels, making it suitable for medium to large RGBIC lighting installations.

Can the digital and PWM outputs react to music together?

Yes. The built-in microphone synchronizes both the digital SPI output and PWM channels simultaneously for unified music-reactive lighting effects.

Does it require a separate smart hub?

No. The controller connects directly to your network via WiFi or Ethernet and is managed entirely through the WLED app or web interface.

What is the maximum power output?

The controller supports a maximum load of 360W with 15A total output, depending on the operating voltage (5V, 12V, or 24V).

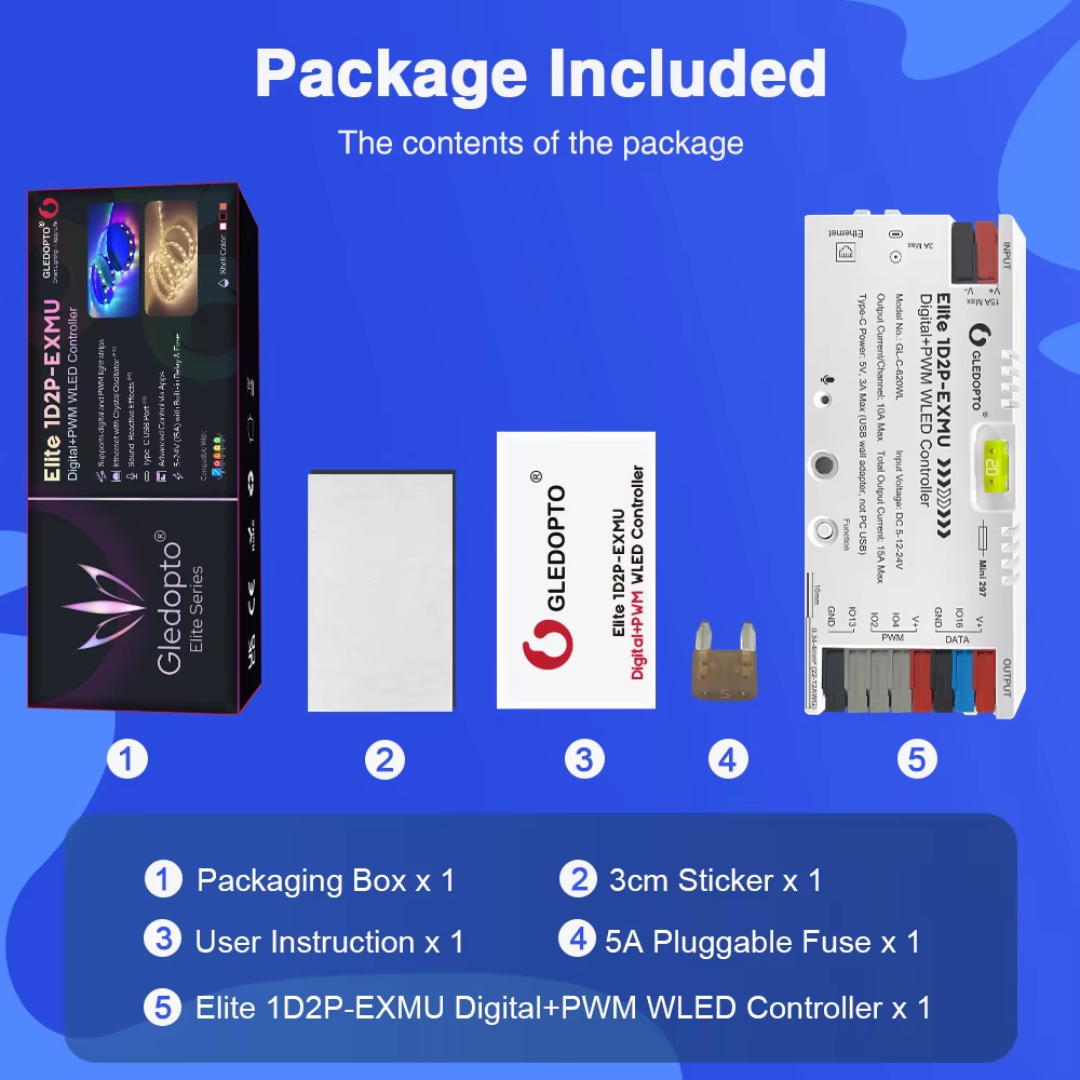

Package Includes

• 1 × GLEDOPTO GL-C-620WL Hybrid WLED Controller

• User Manual

Why Buy from Chronos Lights?

• Genuine GLEDOPTO Products

• Fast Shipping Across India

• Expert Technical Support

• Trusted Smart Lighting Specialists

• Ideal for DIY Enthusiasts, Installers & Professional Lighting Integrators

The GLEDOPTO GL-C-620WL is the ultimate hybrid WLED controller for installers and enthusiasts who need to combine RGBIC pixel lighting with single-color or CCT LED strips. With WiFi, Ethernet, 1,600-pixel support, 360W output, and seamless WLED integration, it delivers professional-grade smart lighting control from a single compact controller.
